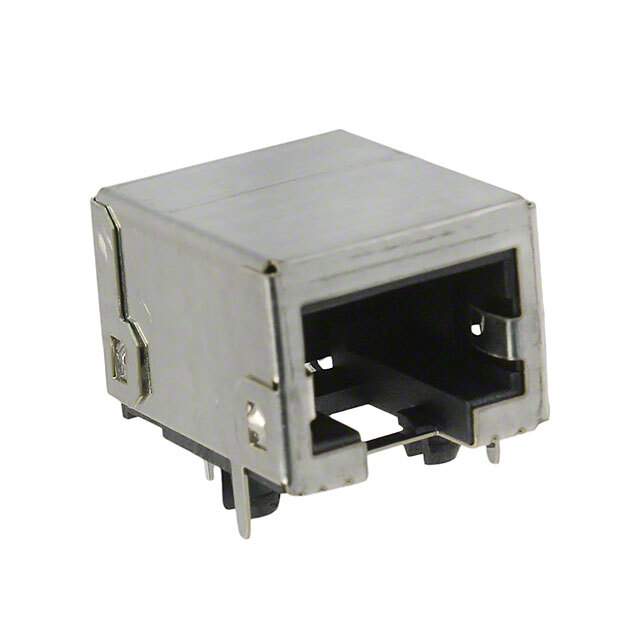

Same model may have multiple batches, images only for reference.

85505-5113

Name: 85505-5113
Brand: Molex, LLC
SKU: 968764
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	85505-5113
Manufacturer	Molex, LLC
Catalog	Modular Connectors
Description	Connector Backplane Power RCP 8 POS 2mm Press Fit RA Thru-Hole 24 Terminal 1 Port
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Connector Type	RJ45
Contact Material	Bronze, Gold, Nickel
Contact Plating	Gold
Country of Origin	US
Current Rating	1.5 A
Depth	18.8 mm
Flammability Rating	UL94 V-0
Gender	Female
Halogen Free	Low Halogen
Height	13.35 mm
Housing Color	Black
Housing Material	Polymer
Lead Free	Yes
Length	16.6 mm
Maximum Operating Temperature	80 °C
Max Voltage Rating (DC)	125 V
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Contacts	8
Number of Pins	8
Number of Ports	1
Number of Positions	8
Number of Positions Loaded	8
Orientation	Right Angle
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Shielding	Shielded
Termination	Through Hole
Voltage Rating	125 V
Voltage Rating (AC)	125 V
Width	16.6 mm
Win Source Part Number	968764-85505-5113
Categories	Modular Connectors
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 85505-5113 CAD Model

Alternative Products

Description

The Molex, LLC 968764-85505-5113 is a modular connector that has 8 positions with a pitch of 2.54mm.

Color: Black
Connector Type: RJ45
Shielding: Shielded
Halogen: Low Halogen
RoHS: Compliant with RoHS
Supply/Demand Status: Shortage
