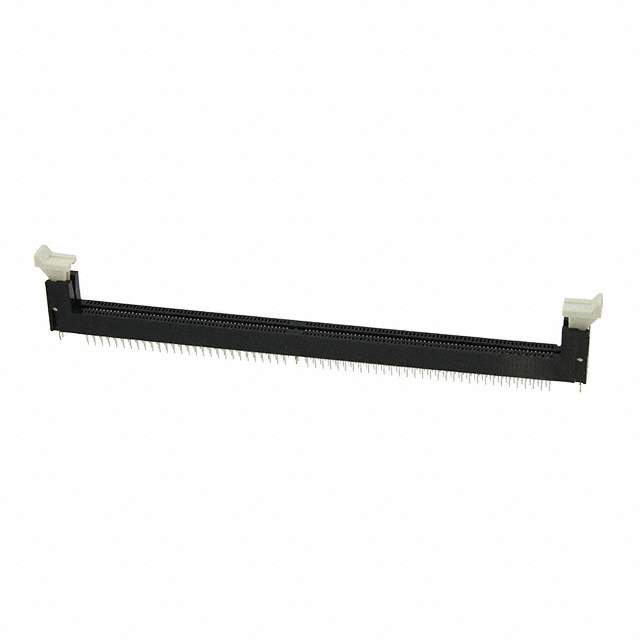

877050021 Real Image
Same model may have multiple batches, images only for reference.

877050021

Part No 877050021
Manufacturer Molex, LLC
Catalog Memory Connectors - Inline Module Sockets
Description CONN SKT DIMM 240POS PCB
Datasheet
877050021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series 87705
Packaging Tray
Connector Style DIMM
Number of Positions 240
Memory Type DDR2 SDRAM
Standards MO-237
Mounting Style Through Hole
Features Board Lock, Latches
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 15μin (0.38μm)
Win Source Part Number 766367-877050021
Popularity Medium
Supply and Demand Status Limited
Family Name 87705
Introduction Date May 26, 2010
ECCN EAR99
Country of Origin Indonesia, Indonesia, Indonesia, Singapore
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 877050021 CAD Model

Description

The component falls under the Connectors, Interconnects category and has a number of positions of 240.

  • Positions: 240
  • Features: Board Lock, Latches
  • Contact Finish Thickness: 15μin (0.38μm)
  • Memory Type: DDR2 SDRAM
  • Mounting Style: Through Hole
