Same model may have multiple batches, images only for reference.

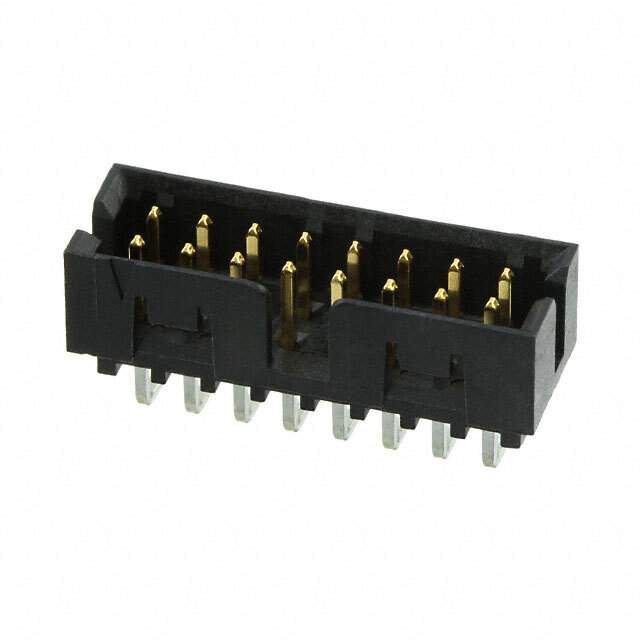

87833-1620 Real Image
Same model may have multiple batches, images only for reference.

87833-1620

Part No 87833-1620
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 16POS 2MM R/A GOLD
Datasheet
87833-1620 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 16
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post 0.085" (2.16mm)
Insulation Height 0.248" (6.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Telecommunications
Win Source Part Number 052817-87833-1620
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 87833-1620 CAD Model

Description

Description

The 87833-1620 connector is distinguished by its robust design and versatility, suitable for high-performance and heavy-duty applications. It ensures the highest level of connectivity and reliability.

Features and Benefits

  • Robust Design: Handles heavy-duty applications with ease.
  • Versatility: Adapted for a wide range of technologies and devices.
  • Secure Connections: Minimizes disconnection risks and enhances safety.
  • Optimal Performance: Ensures consistent signal quality across applications.

Applications

  • Heavy Machinery
  • Industrial Control Systems
  • Power Distribution Units
  • Energy Sector Equipment

Additional Details

Built to exceed expectations in demanding environments, the 87833-1620 connector is a reliable choice for professionals demanding high performance and durability.
