Same model may have multiple batches, images only for reference.

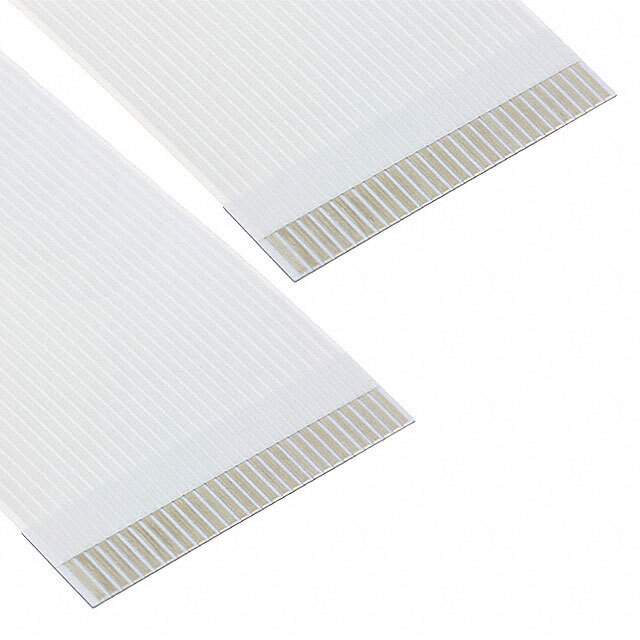

982670475 Real Image
Same model may have multiple batches, images only for reference.

982670475

Part No 982670475
Manufacturer Molex, LLC
Catalog Flat Flex, Ribbon Jumper Cables
Description CABLE FFC 30POS 1.00MM 6" / Cable Assembly FFC Jumper Cable 30Conductors 60VAC 0.152m
Datasheet
982670475 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Molex, LLC
Series Premo-Flex 98267
Cable Type FFC
Number of Conductors 30
Pitch 0.039" (1.00mm)
Length 6.000" (152.40mm)
Length - Exposed Ends 0.157" (4.00mm)
Termination Style Top on Both Sides, Backers Both Sides
Win Source Part Number 777770-982670475
Popularity Medium
Supply and Demand Status Limited
Family Name 98267
Introduction Date May 27, 2010
ECCN EAR99
Country of Origin Germany, Hungary
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 982670475 CAD Model

Description

The Molex 777770-982670475 is an electronic component product that belongs to the category of cable assemblies.

  • Product: Premo-Flex 98267
  • Pitch: 0.039" (1.00mm)
  • Termination Style: top on both sides, backers both sides
  • Length: 6.000" (152.40mm)
  • FFC Cable Type: FFC
  • Conductors: 30
  • Family Name: 98267
  • Length - Exposed Ends: 0.157" (4.00mm)
  • Introduction Date: May 27, 2010
  • ECCN: EAR99
  • Country of Origin: Germany, Hungary
  • Estimated EOL Date: 2027
