MA730GQ-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MA730GQ-Z real image15381 MA730GQ-Z real image15382
Same model may have multiple batches, images only for reference.
MA730GQ-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MA730GQ-Z real image15381 MA730GQ-Z real image15382
MA730GQ-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MA730GQ-Z real image15381 MA730GQ-Z real image15382
Same model may have multiple batches, images only for reference.

MA730GQ-Z

Part No MA730GQ-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Active
For Measuring Angle
Technology Hall Effect
Output PWM
Output Signal Programmable
Actuator Type External Magnet, Not Included
Voltage - Supply 3.3V
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Operating Temperature -40°C ~ 125°C

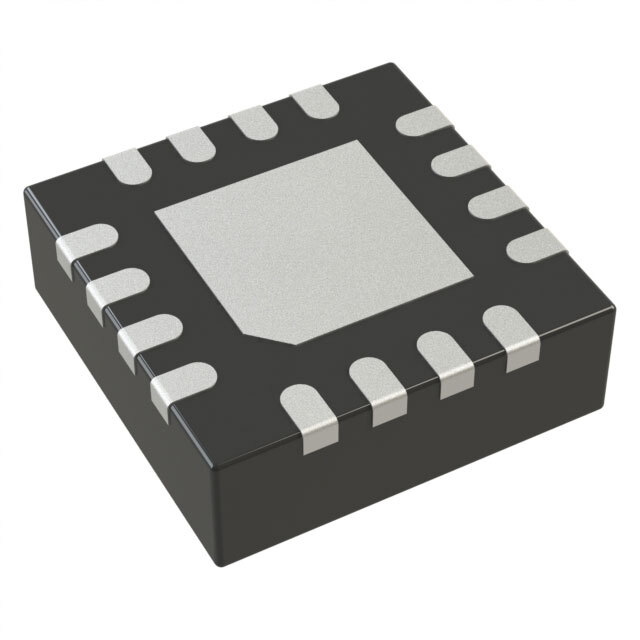

Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Ultra Librarian 3D Model Ultra Librarian MA730GQ-Z CAD Model

Description

The MA730GQ-Z is a programmable output signal Hall effect sensor designed for use in measuring angle.

  • Output Signal: Programmable
  • Output Type: PWM
  • Actuator Type: External magnet (not included)
  • Package: 16-QFN (3x3)
  • Temperature Range: -40°C to 125°C
  • Supply Voltage: 3.3V
  • Pack Quantity: 5,000
  • Supply/Demand Status: Balanced
  • MSL Level: 1 (unlimited)
