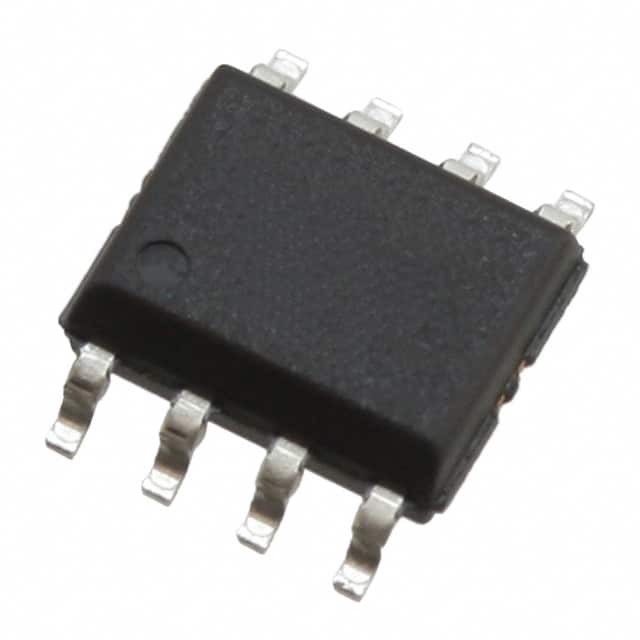

AS5601-ASOM
Same model may have multiple batches, images only for reference.

AS5601-ASOM

Part No AS5601-ASOM
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE SMD / Hall Effect Sensor Angle External Magnet, Not Included Gull Wing
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr OSRAM Opto Semiconductors Inc.
Package Tape & Reel
Product Status Active
For Measuring Angle
Technology Hall Effect
Output I²C, Quadrature
Actuator Type External Magnet, Not Included
Voltage - Supply 3.3V, 5V
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 125°C
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number AS5601
Standard Package 500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 851349-AS5601-ASOM
Ultra Librarian 3D Model Ultra Librarian AS5601-ASOM CAD Model

Description

The 851349-AS5601-ASOM is a position sensor designed for angle and linear position measuring applications.

  • Technology: Hall Effect
  • Output Signals: I²C and Quadrature
  • Supply Voltage: 3.3V or 5V
  • Mounting Type: Surface Mount
  • Package: 8-SOIC
  • Temperature Range: -40 degrees Celsius to 125 degrees Celsius
  • Applications: Industrial and Automotive
