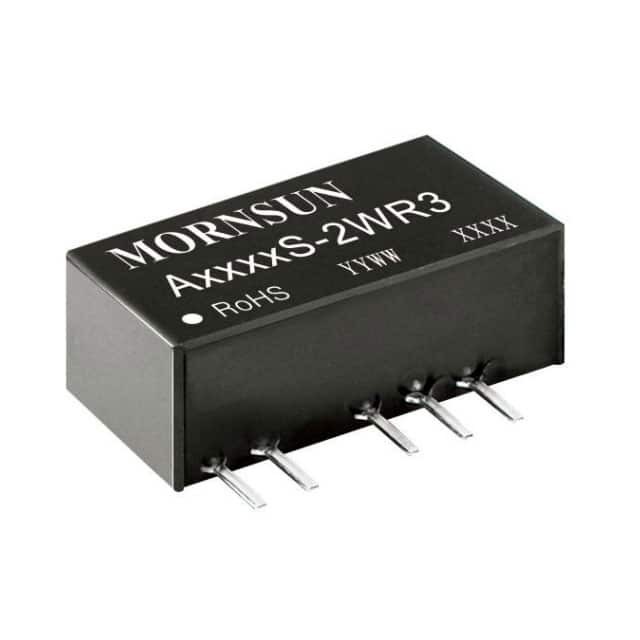

Same model may have multiple batches, images only for reference.

A0512S-2WR3

Get a Quote

Part No	A0512S-2WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 2.97V - 3.63V Input
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Mornsun America, LLC
Series	A0512S-2WR3 (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	2.97V
Voltage - Input (Max)	3.63V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	83mA, 83mA
Power (Watts)	1.9 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	85%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	2725-A0512S-2WR3
Standard Package	25
Win Source Part Number	1032026-A0512S-2WR3
Ultra Librarian 3D Model	Ultra Librarian A0512S-2WR3 CAD Model

Alternative Products

Description

The A0512S-2WR3 (2W) is an isolated module DC-DC converter from MORNSUN America LLC.

Application: ITE (Commercial)
Standard Package: 25
Power Output: 1.9 W
Efficiency: 85%
Voltage Isolation: 1.5 kV
Outputs: 2
Maximum Current Output (per output): 83mA
Input Voltage Range: Between 2.97V to 3.63V
Output Voltage (Output 1): 12V
Output Voltage (Output 2): -12V
Mounting Type: Through-hole
Package: 7-SIP module, 5 leads
Operating Temperature Range: -40°C to 105°C (with derating)
Dimensions: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
