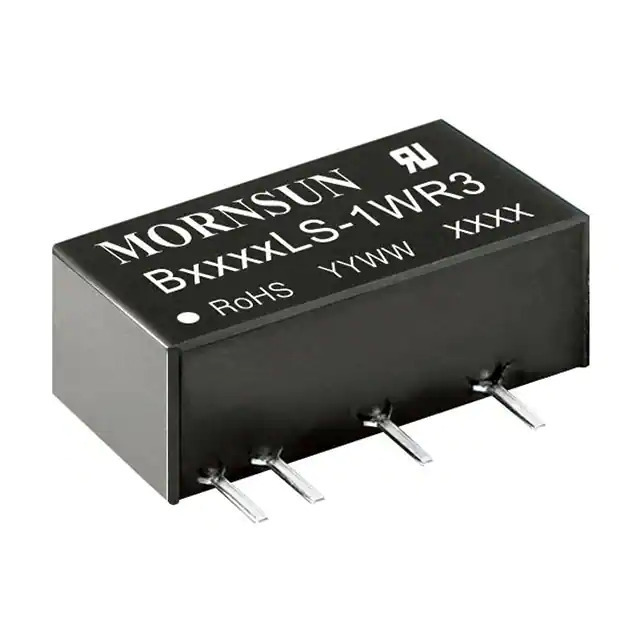

Same model may have multiple batches, images only for reference.
B2409LS-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

B2409LS-1WR3

Part No B2409LS-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series B_LS-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 9V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 111mA
Power (Watts) 999 mW
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372848-B2409LS-1WR3
Ultra Librarian 3D Model Ultra Librarian B2409LS-1WR3 CAD Model

Description

The B2409LS-1WR3 is a compact and efficient DC-DC converter module manufactured by Mornsun America.

  • Temperature Range: -40°C to 105°C
  • Size: 0.77" L x 0.24" W x 0.40" H
  • Output Voltage: 9V
  • Maximum Output Current: 111mA
  • Power Rating: 999mW
  • Voltage Input Range: 21.6V to 26.4V
  • Compliance: CB, CE, cURus, and UL standards
  • Applications: ITE (Commercial)
