Same model may have multiple batches, images only for reference.

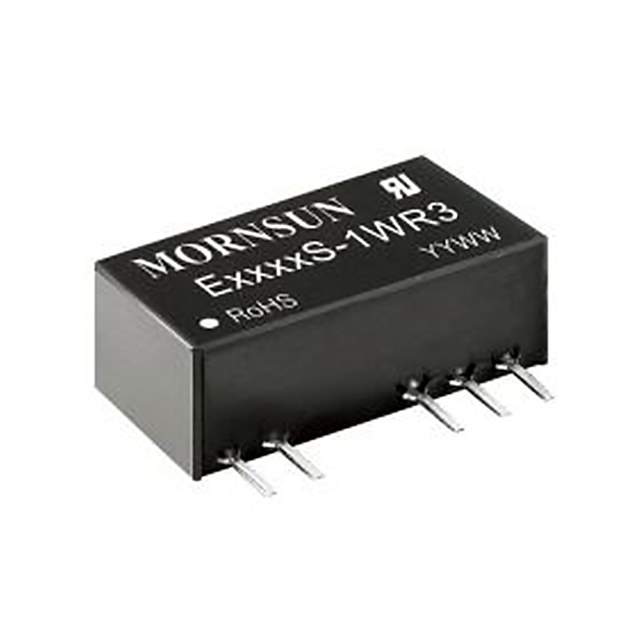

E0515S-1WR3 Real Image
Same model may have multiple batches, images only for reference.

E0515S-1WR3

Part No E0515S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 34mA, 34mA 4.5V - 5.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Mornsun America, LLC
Series E_S-1WR3 (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 34mA, 34mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Approval Agency CB, CE, cURus
Base Product Number E0515S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2725-E0515S-1WR3,-2729-E0515S-1WR3
Standard Package 25
Win Source Part Number 1056583-E0515S-1WR3
Ultra Librarian 3D Model Ultra Librarian E0515S-1WR3 CAD Model

Description

The E_S-1WR3 (1W) is an isolated module type DC-DC converter from MORNSUN America, LLC. E_S-1WR3 (1W) from MORNSUN America, LLC.

  • Application: ITE (Commercial)
  • Standard Package: 25
  • Power Output: 1W
  • Efficiency: 83%
  • Voltage Isolation: 3 kV
  • Output 1: 15V @ 34mA
  • Output 2: -15V @ 34mA
  • Input Voltage Range: 4.5V to 5.5V
  • Mounting Type: Through Hole
  • Package/Case: 7-SIP Module, 5 Leads
  • Operating Temperature: -40°C to 105°C (with derating)
  • Dimension: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
  • Approvals: CB, CE, cURus
