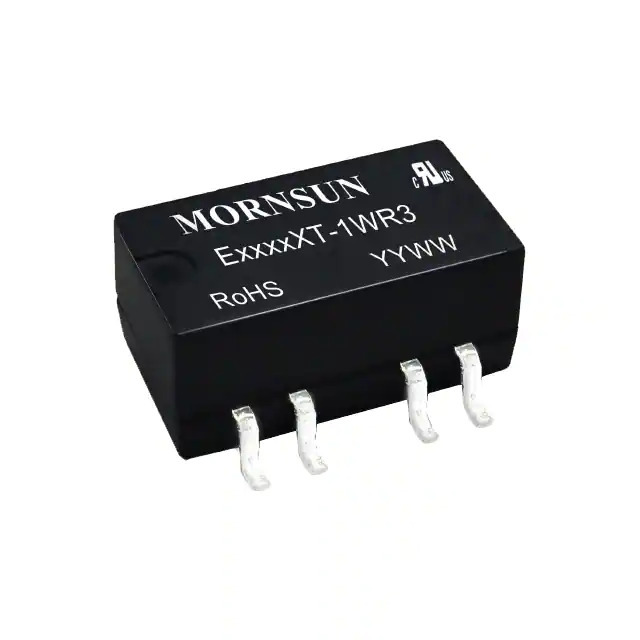

E0524XT-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

E0524XT-1WR3

Part No E0524XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-24V 1W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series E_XT-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 24V
Voltage - Output 2 -24V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 21mA, 21mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 85%
Mounting Type Surface Mount
Package / Case 10-SMD Module, 6 Leads
Size / Dimension 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus
Base Product Number E0524XT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372937-E0524XT-1WR3
Ultra Librarian 3D Model Ultra Librarian E0524XT-1WR3 CAD Model

Description

The Mornsun America, LLC E_XT-1WR3 (1W) is a power supply module designed for board mount DC-DC conversion.

  • Operating Temperature: -40°C ~ 105°C (with derating)
  • Voltage - Input: 4.5V ~ 5.5V
  • Output Voltage: 24V, -24V
  • Efficiency: 85%
  • Output Current: 21mA
  • Mounting Type: Surface Mountable
  • Package / Case: 10-SMD Module, 6 Leads
  • Application: ITE (Commercial)
  • Approvals: CB, CE, and cURus
  • Voltage - Isolation: 3 kV
  • Size / Dimension: 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
