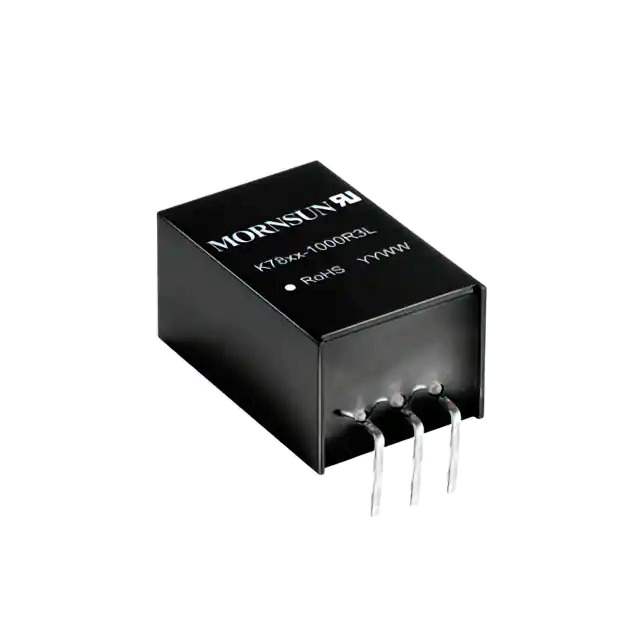

Same model may have multiple batches, images only for reference.

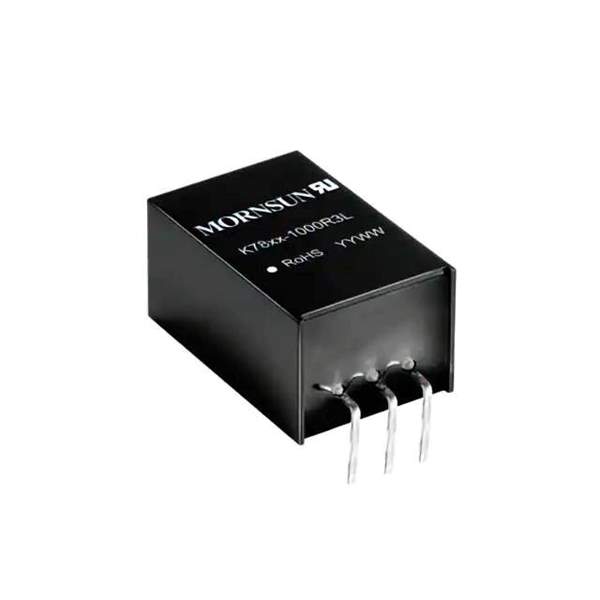

K7803-1000R3L Real Image
Same model may have multiple batches, images only for reference.

K7803-1000R3L

Part No K7803-1000R3L
Catalog Power Supplies Board Mount DCDC Converters
Description LINEAR REGULATOR REPLACEMENT DC
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series K7803-1000R3L
Package Tube
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 6V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1A, 300mA
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 96%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Approval Agency CB, CE, cURus, UL
Standard Number 60950-1; 62368-1
Standard Package 44 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1066882-K7803-1000R3L
Ultra Librarian 3D Model Ultra Librarian K7803-1000R3L CAD Model

Description

The K7803-1000R3L is a non-isolated PoL (Point of Load) module designed for board mount applications.

  • Size: 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
  • Application: ITE (Commercial)
  • Outputs: two outputs
  • Maximum current: 1A and 300mA respectively
  • Voltage output: 12V and -12V
  • Input voltage range: 6V to 36V
  • Efficiency: 96%
  • Mounting type: through-hole
  • Package: 3-SIP
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approvals: CB, CE, cURus, and UL standards
