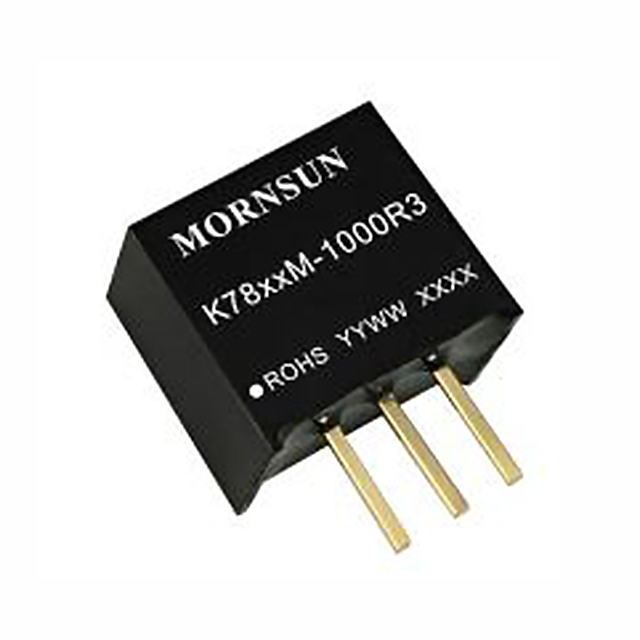

Same model may have multiple batches, images only for reference.
K7803M-1000R3 MORNSUN Science& Technology Ltd. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

K7803M-1000R3

Part No K7803M-1000R3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 3.3W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Package Tube
Product Status Not For New Designs
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 6V
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Current - Output (Max) 1A
Power (Watts) 3.3 W
Applications ITE (Commercial)
Features SCP
Operating Temperature -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
Approval Agency CE
Ultra Librarian 3D Model Ultra Librarian K7803M-1000R3 CAD Model

Description

The Mornsun America, LLC K7803M-1000R3 is a non-isolated PoL (Point of Load) module in a 3-SIP module package.

  • Module Type: Non-Isolated PoL
  • Package: 3-SIP Module
  • Maximum Input Voltage: 36V
  • Output Voltage: 3.3V
  • Maximum Output Current: 1A
  • Power Rating: 3.3W
  • Efficiency: 90%
  • Application: Board-Mounted DC-DC Converter
  • Temperature Range: -40°C to 85°C
  • Approvals: CE
  • Common Use: Commercial Information Technology Equipment
