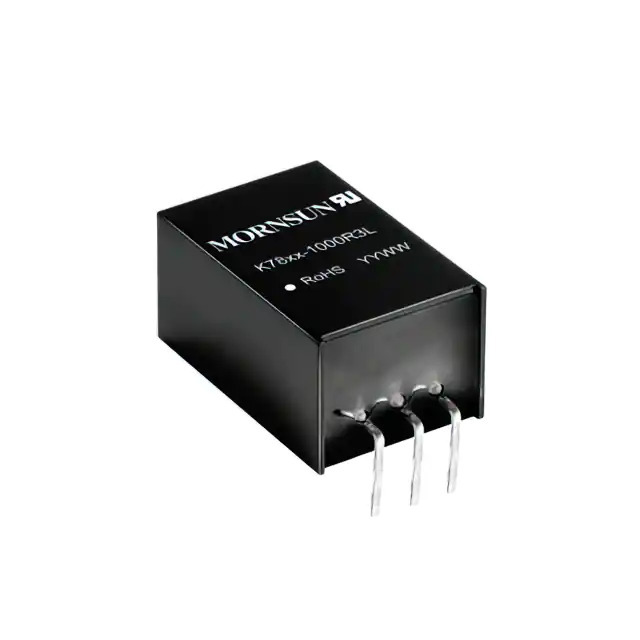

K7815-1000R3L MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

K7815-1000R3L

Part No K7815-1000R3L
Catalog Power Supplies Board Mount DCDC Converters
Description LINEAR REGULATOR REPLACEMENT DC
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series K7815-1000R3L
Package Tube
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 8V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1A, 300mA
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 96%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 60950-1; 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372816-K7815-1000R3L
Ultra Librarian 3D Model Ultra Librarian K7815-1000R3L CAD Model

Description

The K7815-1000R3L is a non-isolated PoL module manufactured by Mornsun America, LLC.

  • Series: K7815-1000R3L
  • Package: 3-SIP module
  • Application: ITE (Commercial)
  • Input Voltage: 8V to 18V
  • Output Current (Output 1): 1A (Maximum)
  • Output Current (Output 2): 300mA (Maximum)
  • Output Voltage (Output 1): 15V
  • Output Voltage (Output 2): -15V
  • Efficiency: 96%
  • Approvals: CB, CE, cURus, UL
  • Dimensions: 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
  • Operating Temperature: -40°C to 85°C
