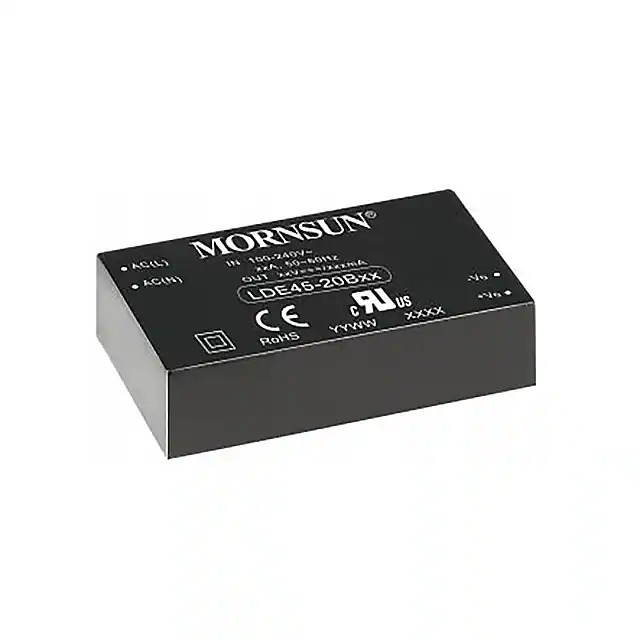

LDE45-20B24 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

LDE45-20B24

Part No LDE45-20B24
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 46W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series LDE45-20Bxx (45W)
Package Tray
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 100 ~ 370 VDC
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1.9A
Power (Watts) 46 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 3.43" L x 2.05" W x 1.16" H (87.0mm x 52.0mm x 29.5mm)
Approval Agency CB, CE, cURus
Line Regulation ±0.5%
Load Regulation ±1%
Base Product Number LDE45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.7001
Win Source Part Number 1372944-LDE45-20B24
Ultra Librarian 3D Model Ultra Librarian LDE45-20B24 CAD Model

Description

The 1372944-LDE45-20B24 is an AC-DC converter module designed for board mount applications. Manufactured by Mornsun America, LLC.

  • Series: LDE45-20Bxx (45W)
  • Package / Case: 4-DIP module package
  • Size / Dimension: 3.43" L x 2.05" W x 1.16" H
  • Operating Temperature: -40°C to 70°C
  • Voltage - Input: 85VAC to 264VAC and 100VDC to 370VDC
  • Voltage - Output 1: 24V
  • Output Current: 1.9A
  • Power (Watts): 46W
  • Application: ITE (Commercial) devices
  • Efficiency: 86%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1%
  • Mounting Type: Through-Hole
  • Approvals: CB, CE, and cURus
