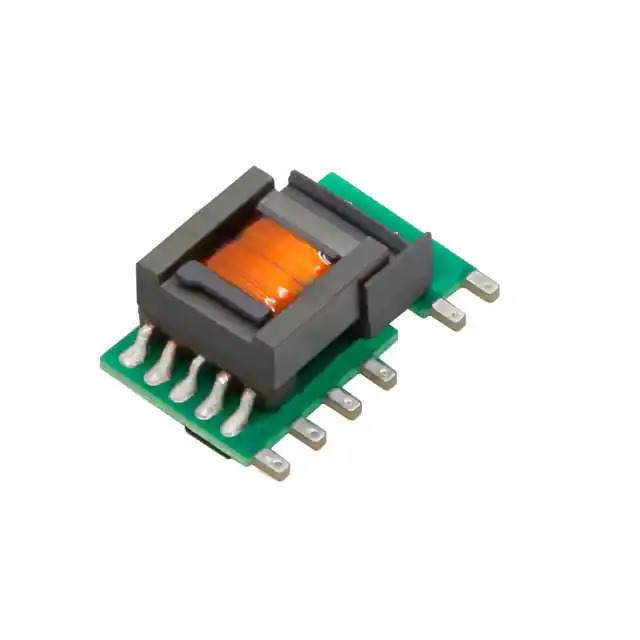

Same model may have multiple batches, images only for reference.
LS05-13B24R3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

LS05-13B24R3

Part No LS05-13B24R3
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 5W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series 305RAC / LS-R3
Package Tray
Product Status Active
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 70 ~ 430 VDC
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 210mA
Power (Watts) 5 W
Applications Household Appliances, ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 6-SIP Module
Size / Dimension 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm)
Approval Agency CB, CE, cURus
Line Regulation ±1.5%
Load Regulation ±3%
Base Product Number LS05-13
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1372717-LS05-13B24R3
Ultra Librarian 3D Model Ultra Librarian LS05-13B24R3 CAD Model

Description

The 305RAC / LS-R3 series is a high-quality open frame AC-DC converter from Mornsun America, LLC.

  • Applications: Power Supplies, Household Appliances, ITE (Commercial)
  • Size: 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm)
  • Output Current: 210mA
  • Power Rating: 5W
  • Input Voltage: 85 ~ 305 VAC and 70 ~ 430 VDC
  • Output Voltage: 24V
  • Approval Agencies: CB, CE, cURus
  • Efficiency: 81%
  • Line and Load Regulation: Low
