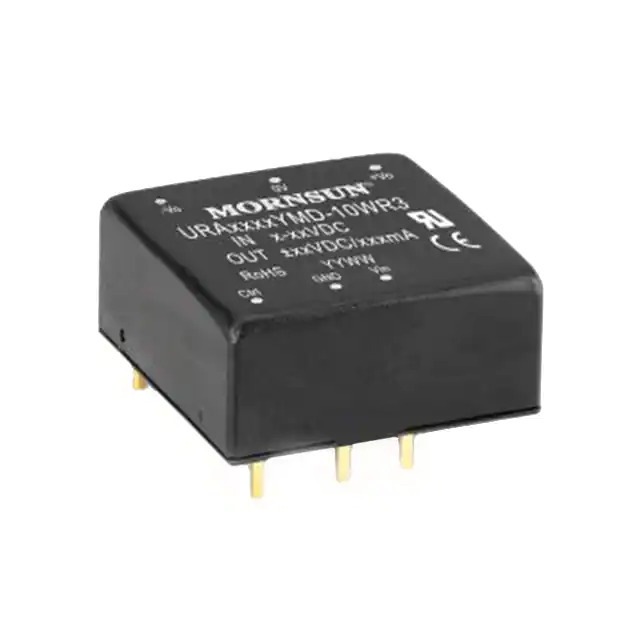

Same model may have multiple batches, images only for reference.
URA2412YMD-20WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

URA2412YMD-20WR3

Part No URA2412YMD-20WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 833mA, 833mA 9V - 36V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series URA2412YMD-20WR3 (20W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 833mA, 833mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Base Product Number URA2412
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1353927-URA2412YMD-20WR3
Ultra Librarian 3D Model Ultra Librarian URA2412YMD-20WR3 CAD Model

Description

The URA2412YMD-20WR3 is an isolated module from Mornsun America, LLC.

  • Series: URA2412YMD-20WR3 (20W)
  • Package: 6-DIP Module
  • Power Supply Type: Active
  • Application: ITE (Commercial)
  • Voltage Input Range: 9V to 36V
  • Maximum Output Current: 833mA (both outputs)
  • Output Voltages: 12V and -12V
  • Efficiency: 90%
  • Approvals: CE
  • Size: 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
  • Operating Temperature: -40°C to 105°C
