Same model may have multiple batches, images only for reference.

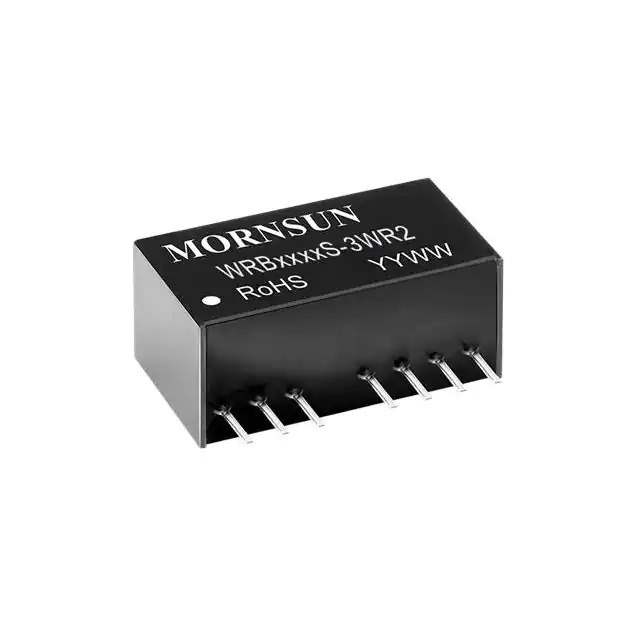

WRB1212S-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRB1212S-3WR2

Part No WRB1212S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRB_S-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Current - Output (Max) 250mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Standard Number 60950-1
Standard Package 22 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 697842-WRB1212S-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB1212S-3WR2 CAD Model

Description

The 697842-WRB1212S-3WR2 is a 3W isolated module DC-DC converter from MORNSUN Science & Technology Ltd.

  • Series: WRB_S-3WR2
  • Application: Power supplies in board mount applications
  • Feature: Remote On/Off
  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 250mA
  • Input Voltage: 9V to 18V
  • Output Voltage: 12V
  • Efficiency: 82%
  • Package: 8-SIP module, 7 leads
  • Application: ITE (Commercial)
  • Status: Active
  • Temperature Range: -40°C to 85°C
