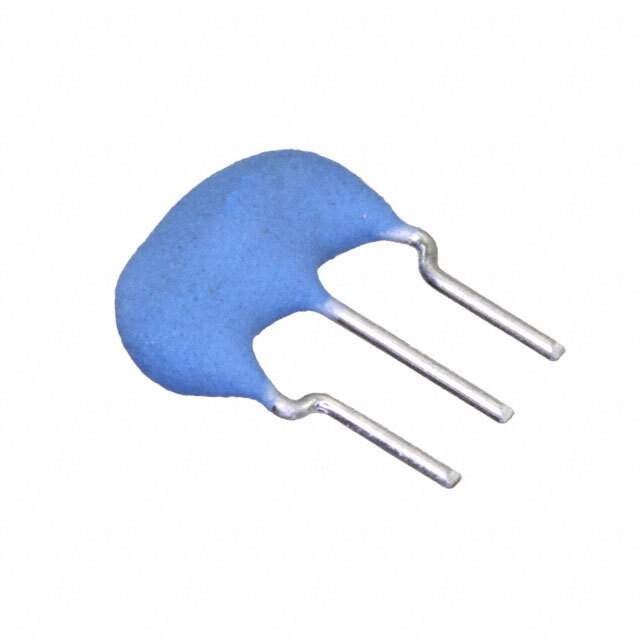

CSTS1000MG03 Real Image
Same model may have multiple batches, images only for reference.

CSTS1000MG03

Part No CSTS1000MG03
Manufacturer Murata Electronics North America
Catalog Resonators
Description CER RES 10.0000MHZ 15PF T/H
Datasheet
CSTS1000MG03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Murata Electronics North America
Packaging Bulk
Status Active
Type Ceramic
Frequency 10MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 15pF
Impedance 25 Ohm
Temperature Range - Operating -20°C to 80°C
Mounting Through Hole
Dimension 0.315" L x 0.118" W (8.00mm x 3.00mm)
Height 0.236" (6.00mm)
Win Source Part Number 202964-CSTS1000MG03
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CSTS1000MG03 CAD Model

Description

CSTS1000MG03 Resonator

The CSTS1000MG03 is a versatile resonator designed to deliver consistent performance in a multitude of electronic applications. With reliability at its core, it is an ideal choice for ensuring stable frequency references.

  • Applications:
    • Microcontroller circuits
    • Embedded systems
    • Clock generators
  • Features and Benefits:
    • Wide frequency range for diverse applications
    • Stable frequency response over wide temperature ranges
    • Compact and lightweight, facilitating ease of integration
  • Additional Details:
    • Frequency: 1.00 MHz
    • Package size: Ultra-miniature
    • Operating temperature: -10°C to 60°C
