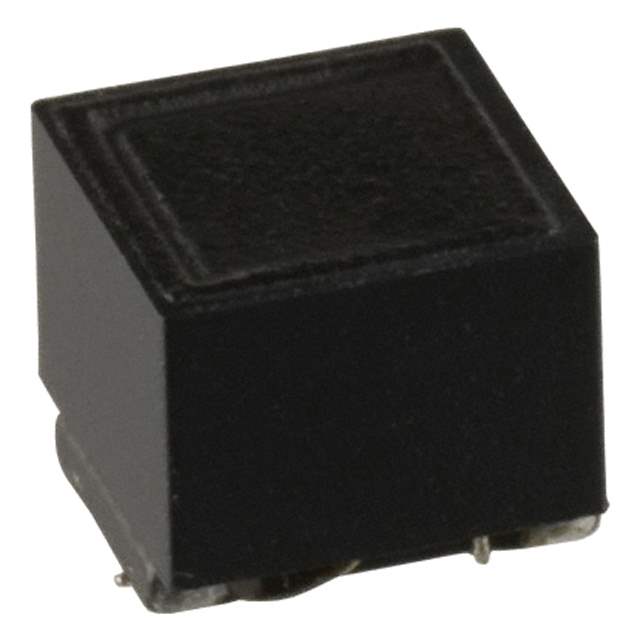

DLW5BSN152SQ2L Real Image DLW5BSN152SQ2L label picture
Same model may have multiple batches, images only for reference.
DLW5BSN152SQ2L Real Image DLW5BSN152SQ2L label picture
DLW5BSN152SQ2L Real Image DLW5BSN152SQ2L label picture
Same model may have multiple batches, images only for reference.

DLW5BSN152SQ2L

Part No DLW5BSN152SQ2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 1A 2LN 1.5 KOHM SMD
Datasheet
DLW5BSN152SQ2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 1.5 kOhm @ 100MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 100 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 050843-DLW5BSN152SQ2L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DLW5BSN152SQ2L CAD Model

Description

Product Overview

The DLW5BSN152SQ2L offers high-efficiency EMI suppression, engineered for various electronic applications requiring enhanced electromagnetic compatibility.

Features and Benefits

  • Advanced EMI Filtering: Provides superior noise reduction.
  • Compact and Durable: Designed for longevity and efficiency.
  • Environmentally Friendly: Compliant with RoHS standards.

Applications

  • Power management systems
  • Embedded systems
  • Automotive applications
  • Mobile devices

Additional Details

Combining advanced technology and robust construction, the DLW5BSN152SQ2L is ideal for modern electronic designs that demand efficient EMI suppression, supporting optimal device performance.
