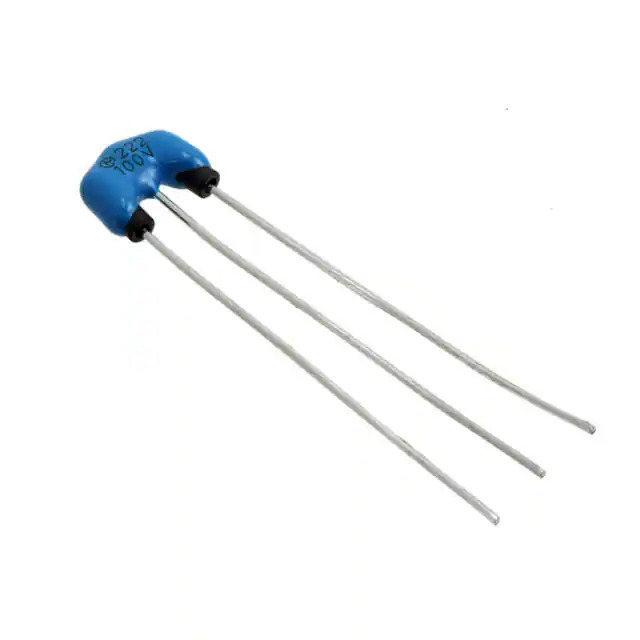

Same model may have multiple batches, images only for reference.

DSS1NB32A101Q91A

Name: DSS1NB32A101Q91A
Brand: Murata Electronics North America
SKU: 1369424
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DSS1NB32A101Q91A
Manufacturer	Murata Electronics North America
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC(T) 100PF TH
Datasheet	DSS1NB32A101Q91A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - EMI/RFI Filters (LC, RC Networks)
Mfr	Murata Electronics
Series	EMIFIL®, DSS1
Product Status	Active
Type	Low Pass
Filter Order	3rd
Technology	LC (T-Type)
Number of Channels	1
Center / Cutoff Frequency	-
Attenuation Value	-
Resistance - Channel (Ohms)	-
Current	6 A
Values	C = 100pF
ESD Protection	No
Temperature Range - Operating	-40°C ~ 85°C
Applications	General Purpose
Voltage - Rated	100V
Mounting Type	Through Hole
Package / Case	Radial - 3 Leads
Size / Dimension	0.335" L x 0.138" W (8.50mm x 3.50mm)
Height	0.295" (7.50mm)
Base Product Number	DSS1NB32A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1369424-DSS1NB32A101Q91A
Ultra Librarian 3D Model	Ultra Librarian DSS1NB32A101Q91A CAD Model

Alternative Products

Description

The Murata Electronics DSS1NB32A101Q91A is an EMI/RFI filter with a voltage rating of 100V and a current rating of 6A.

Series: DSS1
Voltage Rating: 100V
Current Rating: 6A
Technology: Low Pass LC (T-Type)
Package: Radial - 3 Leads
Size: 0.335" L x 0.138" W (8.50mm x 3.50mm)
Temperature Range: -40°C to 85°C
Application: General Purpose
