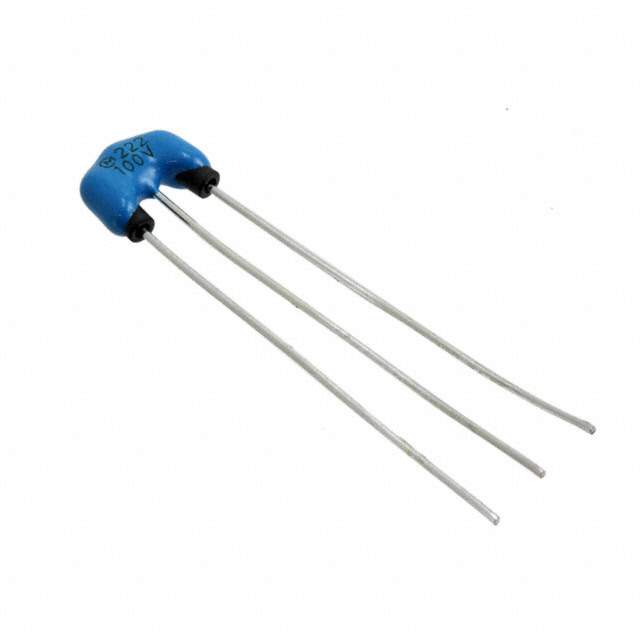

Same model may have multiple batches, images only for reference.

DSS1NB32A223Q55B

Name: DSS1NB32A223Q55B
Brand: Murata Electronics North America
SKU: 1032923
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DSS1NB32A223Q55B
Manufacturer	Murata Electronics North America
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC (T-TYPE) 22000PF TH / LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 22000pF 6 A Radial - 3 Leads
Datasheet	DSS1NB32A223Q55B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>EMI/RFI Filters (LC, RC Networks)
Mfr	Murata Electronics
Series	DSS1
Package	Bag
Type	Low Pass
Filter Order	3rd
Technology	LC (T-Type)
Number of Channels	1
Current	6 A
Values	C = 22000pF
ESD Protection	No
Temperature Range - Operating	-40°C ~ 85°C
Applications	General Purpose
Voltage - Rated	100V
Mounting Type	Through Hole
Package / Case	Radial - 3 Leads
Dimension	0.335" L x 0.138" W (8.50mm x 3.50mm)
Height	0.295" (7.50mm)
Base Product Number	DSS1NB32A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	Q11701551
Standard Package	250
Win Source Part Number	1032923-DSS1NB32A223Q55B
Ultra Librarian 3D Model	Ultra Librarian DSS1NB32A223Q55B CAD Model

Alternative Products

Description

The 1032923-DSS1NB32A223Q55B is an electronic component commonly used in electronic circuits such as power supplies and amplifiers.

Type: Low Pass Filter
Filter Order: 3rd
Center/Cutoff Frequency: -
Current Rating: 6A
Voltage Rating: 100V
Manufacturer: Murata Electronics
Height: 0.295 inches
Dimension: 0.335 inches by 0.138 inches
