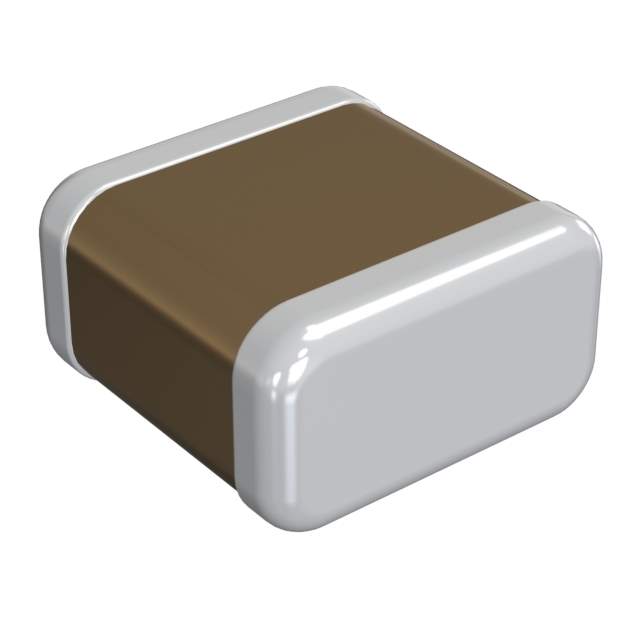

The GRM0335C1E9R0DA01D is a Murata Electronics North America multilayer ceramic capacitor (MLCC) designed for various applications, primarily focusing on high-frequency and general-purpose usage. It is commonly used in small electronic devices where space is a constraint.

Applications:

• Smartphones and Mobile Devices
• Wireless Communication Modules
• Bluetooth Devices
• RF Circuits
• General Decoupling and Bypass Applications

Features:

• Size: 0201 (0.6 mm x 0.3 mm)
• Capacitance: 9.0 pF
• Voltage Rating: 25 VDC
• Temperature Coefficient: C0G (0 ±30 ppm/°C)
• Low ESR (Equivalent Series Resistance)
• High Q-Factor

Benefits:

• Enables miniaturization of electronic products due to its small size.
• Provides stable capacitance performance over a wide temperature range.
• Suitable for high-frequency applications due to low ESR and high Q-factor.
• Enhances signal integrity and reduces noise in electronic circuits.
• Ensures reliable performance in various operating conditions.

Additional Details:

The GRM0335C1E9R0DA01D utilizes a C0G dielectric material known for its exceptional stability, ensuring minimal capacitance drift over temperature and voltage. Its 0201 package allows for high-density mounting on PCBs, making it ideal for compact designs. The capacitor’s low equivalent series resistance (ESR) and high Q-factor make it suitable for high-frequency circuits where low losses are critical. Widely used in decoupling and bypass applications, this MLCC helps to stabilize power supplies and reduce noise in electronic devices, contributing to improved overall performance and reliability.
