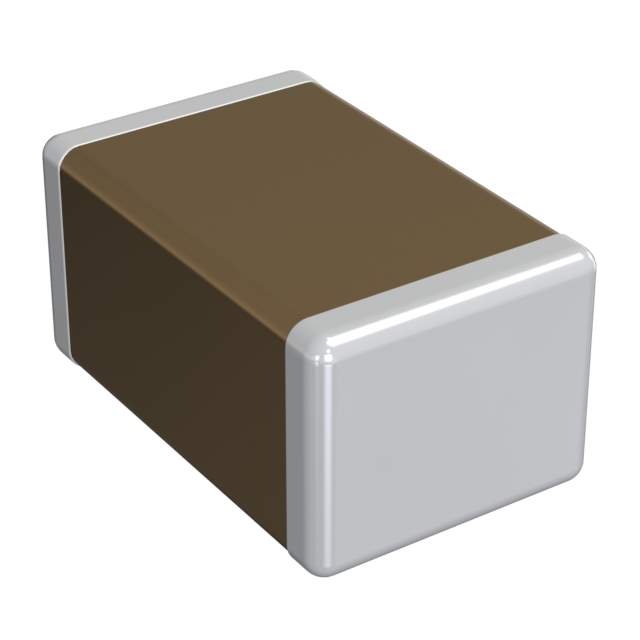

The GRM219R61A226MEA0D is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics. MLCCs are widely used in electronic circuits due to their small size, high capacitance, and excellent performance characteristics.

Applications:

• Bypass Capacitors: Decoupling power supply lines to reduce noise and voltage fluctuations.
• Filtering: Smoothing out AC signals and removing unwanted frequencies.
• Timing Circuits: Providing timing functions in oscillators and other timing-critical applications.
• Smoothing Circuits: Reducing ripple voltage in power supplies.

Features:

• Multilayer Ceramic Construction: Provides high capacitance in a small package.
• High Capacitance Value: 22µF capacitance for effective filtering and energy storage.
• Small Size: 0805 case size for high-density circuit boards.
• X5R Dielectric: Offers stable performance over a wide temperature range.
• RoHS Compliant: Compliant with environmental regulations.

Benefits:

• Effective Noise Reduction: Reduces noise and voltage fluctuations in power supply lines.
• Stable Performance: Maintains stable capacitance over a wide temperature range.
• Compact Size: Allows for high-density circuit board designs.
• High Reliability: Provides long-term reliability and performance.
• Environmentally Friendly: RoHS compliant construction.

Additional Details:

The GRM219R61A226MEA0D has a capacitance value of 22µF with a voltage rating of 10V. It uses an X5R dielectric material, which ensures stable performance over a temperature range of -55°C to +85°C. The 0805 case size is designed for surface mount technology (SMT) assembly. Consult the datasheet for specific electrical characteristics, such as ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance).

This MLCC is commonly used in a variety of electronic devices, including smartphones, tablets, and power supplies. Its high capacitance, small size, and stable performance make it an ideal choice for decoupling, filtering, and timing applications.
