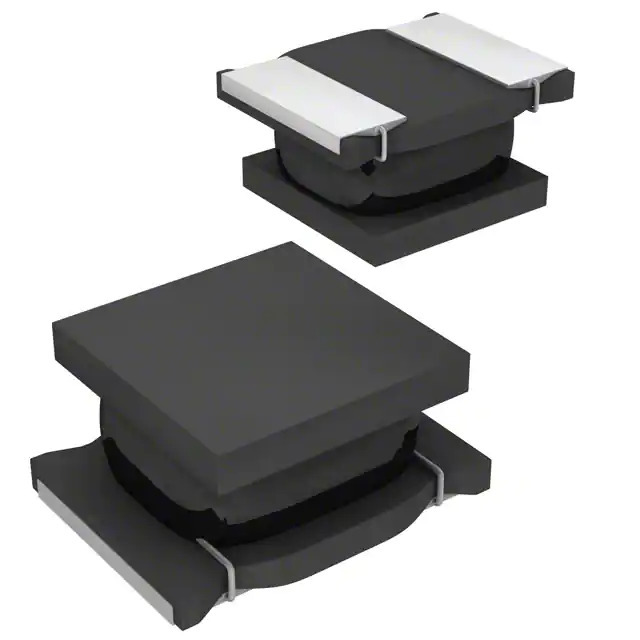

LQH3NPZ100MMEL Murata Electronics North America
Same model may have multiple batches, images only for reference.

LQH3NPZ100MMEL

Part No LQH3NPZ100MMEL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 10UH 800MA 228MOHM SMD
Datasheet
LQH3NPZ100MMEL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series LQH3
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 810mA
Shielding Shielded
DC Resistance (DCR) 228mOhm Max
Frequency - Self Resonant 20MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package 1212 (3030 Metric)
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number LQH3NPZ
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370154-LQH3NPZ100MMEL
Ultra Librarian 3D Model Ultra Librarian LQH3NPZ100MMEL CAD Model

Description

The Murata Electronics LQH3NPZ100MMEL is a drum core, wirewound inductor with a 10 μH inductance and a current rating of 800 mA.

  • Mounting Type: Surface Mount
  • Package Size: 1212 (3030 Metric)
  • Inductance: 10 μH
  • Current Rating: 800 mA
  • Tolerance: ±20%
  • DC Resistance: 228mOhm max
  • Shielded: Yes
  • Height: 0.059" (1.50mm)
  • Operating Temperature: -40°C to 105°C
  • Series: LQH3
  • Packaging: Tape & Reel
