Same model may have multiple batches, images only for reference.

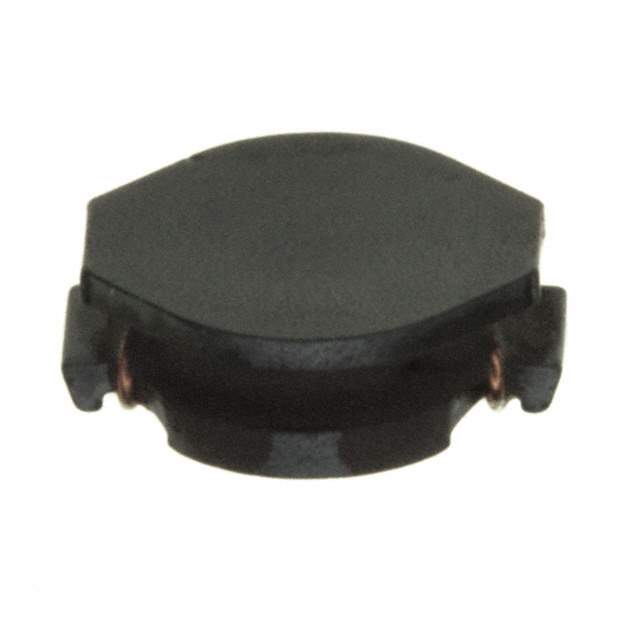

LQH55PN6R8NR0L Real Image
Same model may have multiple batches, images only for reference.

LQH55PN6R8NR0L

Part No LQH55PN6R8NR0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 6.8UH 1.45A 87 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Cut Reel
Status Obsolete(EOL)
Type Wirewound
Inductance 6.8μH
Tolerance ±30%
Current Rating 1.45A
Current - Saturation 1.2A
DC Resistance (DCR) 87 mOhm
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 128156-LQH55PN6R8NR0L
Ultra Librarian 3D Model Ultra Librarian LQH55PN6R8NR0L CAD Model

Description

The Murata Electronics North America LQH55PN6R8NR0L is a wirewound inductor.

  • Current Rating: 1.45A
  • Inductance: 6.8μH
  • Tolerance: ±30%
  • DC Resistance (DCR): 87 mOhm
  • Saturation Current: 1.2A
  • Self-Resonant Frequency: 25MHz
  • Temperature Range: -40°C to 85°C
  • Mounting: SMD (SMT)
  • Packaging: Cut Reel
  • Category: Inductors, Coils, Chokes

Note: This product is obsolete (EOL).
