Same model may have multiple batches, images only for reference.

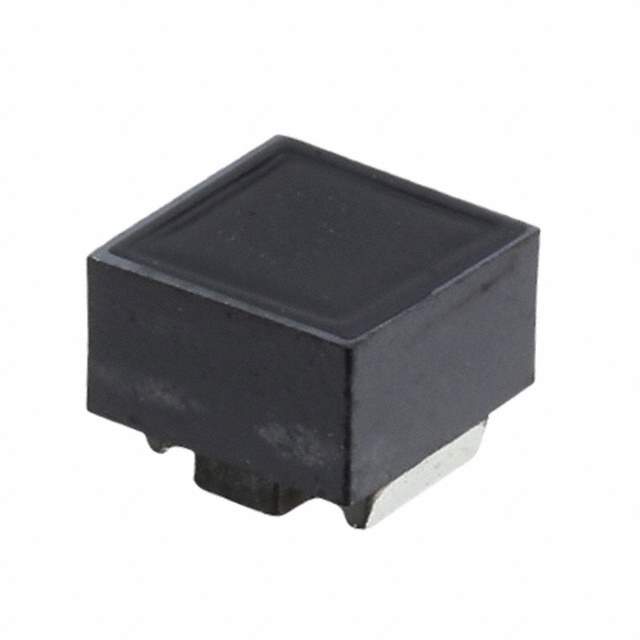

LQH66SN331M03L Real Image
Same model may have multiple batches, images only for reference.

LQH66SN331M03L

Part No LQH66SN331M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 330UH 280MA 2.52 OHM
Datasheet
LQH66SN331M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 330μH
Tolerance ±20%
Current Rating 280mA
DC Resistance (DCR) 2.52 Ohm Max
Frequency - Self Resonant 3.2MHz
Temperature Range - Operating -40°C to 80°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 072048-LQH66SN331M03L
Ultra Librarian 3D Model Ultra Librarian LQH66SN331M03L CAD Model

Description

The Murata Electronics North America component is an active wirewound inductor with a current rating of 280mA and an inductance of 330μH. The Win Source Part Number for this component is 072048-LQH66SN331M03L. This component is categorized as an inductor, coil, or choke and is mounted using SMD (SMT) technology. The component has a tolerance of ±20% and a DC resistance (DCR) of 2.52 Ohm Max. It has a temperature range of -40°C to 80°C and is made of ferrite material.
