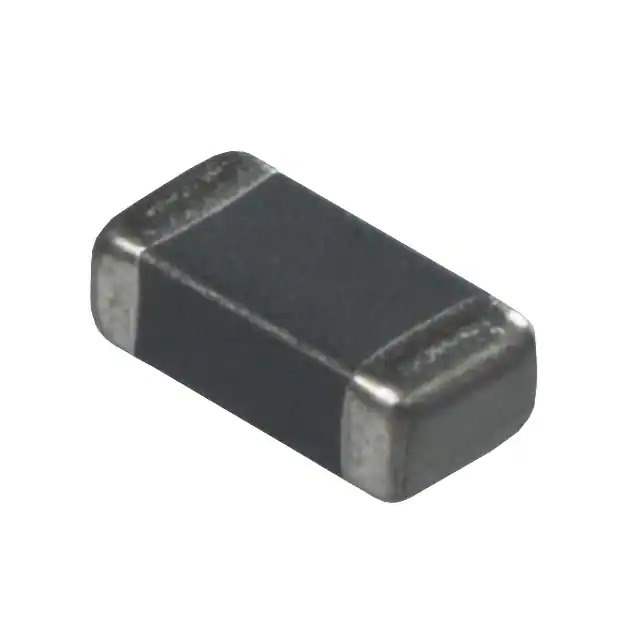

Same model may have multiple batches, images only for reference.

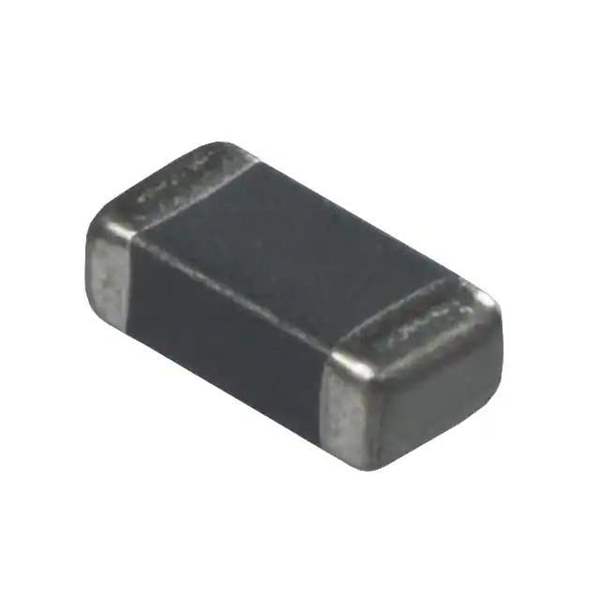

LQM31PN3R3M00L Real Image
Same model may have multiple batches, images only for reference.

LQM31PN3R3M00L

Part No LQM31PN3R3M00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 3.3UH 800MA 300MOHM SM
Datasheet
LQM31PN3R3M00L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics North America
Series LQM31
Package Tape & Reel
Product Status Active
Type Multilayer
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 800 mA
Shielding Shielded
DC Resistance (DCR) 300mOhm Max
Frequency - Self Resonant 30MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
Base Product Number LQM31PN
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 878108-LQM31PN3R3M00L
Ultra Librarian 3D Model Ultra Librarian LQM31PN3R3M00L CAD Model

Description

The LQM31PN3R3M00L is a fixed inductor from Murata Electronics.

  • Series: LQM31
  • Design: Multilayer
  • Type: Shielded
  • Package: Tape and reel
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Mounting: Surface mount
  • Inductance: 3.3 µH
  • Maximum Seated Height: 0.037" (0.95mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 300mOhm max
  • Operating Temperature: -55°C to 125°C
  • Current: 800 mA
  • Self-Resonant Frequency: 30MHz
  • Status: Active
  • REACH: Unaffected
