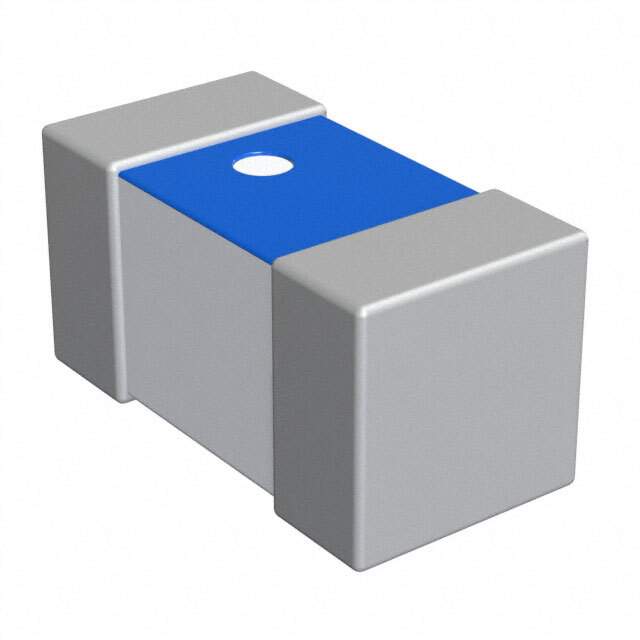

The LQP03TN18NH02D is a high-frequency inductor from Murata Electronics. It's designed for use in a wide range of RF (Radio Frequency) applications, including mobile communication devices, wireless LAN systems, and other high-frequency circuits. This particular inductor is characterized by its small size and high Q factor.

Applications

• RF impedance matching.
• RF filtering.
• Oscillator circuits.
• High-frequency tuning circuits.
• Wireless communication devices (e.g., smartphones, tablets).

Features

• Small size (0201 Case Size).
• High Q factor.
• Tight inductance tolerance.
• Excellent SRF (Self-Resonant Frequency).
• Highly reliable monolithic construction.
• RoHS compliant.

Benefits

• Improved circuit performance due to high Q factor and tight inductance tolerance.
• Reduced board space requirements due to small size.
• Stable performance over a wide temperature range.
• High reliability for demanding applications.
• Optimized for automated assembly processes.

Additional Details

The LQP03TN18NH02D is a multilayer ceramic inductor with a specified inductance value of 18 nH (nanohenries). The high Q factor minimizes losses in RF circuits, improving efficiency and performance. The SRF indicates the frequency at which the inductor's impedance becomes predominantly resistive, limiting its usefulness at higher frequencies. The compact 0201 case size allows for dense circuit layouts. It is designed for surface mount reflow soldering. Specific electrical characteristics and dimensions can be found in the manufacturer's datasheet.

When selecting an inductor for RF applications, it is important to consider the inductance value, Q factor, SRF, current rating, and physical size. The LQP03TN18NH02D offers a good combination of performance and size for a variety of high-frequency circuits.
