Same model may have multiple batches, images only for reference.

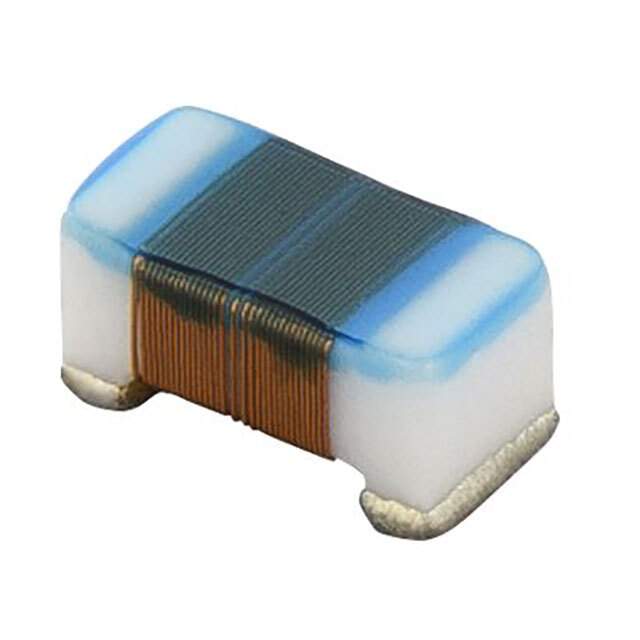

LQW18AS56NJ00D Real Image
Same model may have multiple batches, images only for reference.

LQW18AS56NJ00D

Part No LQW18AS56NJ00D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND / 56 nH Unshielded Wirewound Inductor 600 mA 310mOhm Max 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Type Wirewound
Material - Core Non-Magnetic
Inductance 56 nH
Tolerance ±5%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 310mOhm Max
Q @ Freq 38 @ 200MHz
Frequency - Self Resonant 1.9GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 200 MHz
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number LQW18AS
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 490-LQW18AS56NJ00DDKR,490-LQW18AS56NJ00D-ND,490-LQW18AS56NJ00DCT,490-LQW18AS56NJ00D,490-LQW18AS56NJ00DTR
Standard Package 4,000
Win Source Part Number 1331274-LQW18AS56NJ00D
Ultra Librarian 3D Model Ultra Librarian LQW18AS56NJ00D CAD Model

Description

The LQW18AS56NJ00D is a fixed inductor from Murata Electronics.

  • Type: Wirewound
  • Shielding: Shielded and Unshielded
  • Inductance: 56nH
  • Tolerance: ±5%
  • Mounting: Surface Mount Device
  • Size: 1.6mm x 0.8mm x 1.0mm
  • Applications: Automotive, industrial, and consumer electronics
