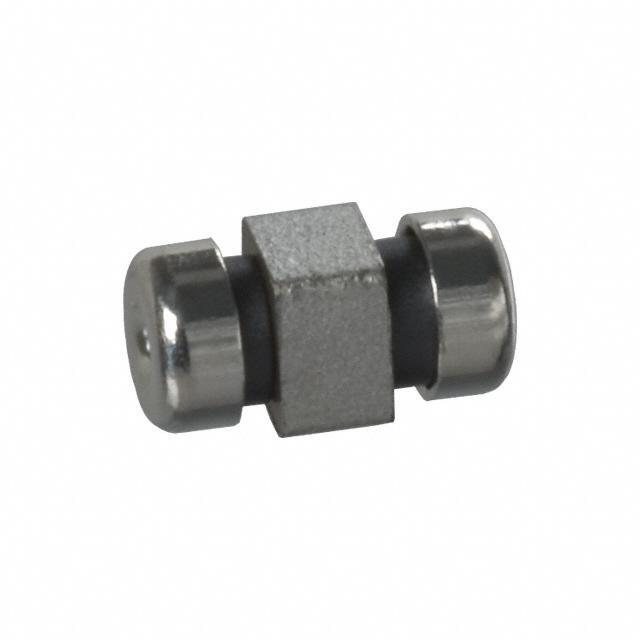

Same model may have multiple batches, images only for reference.
NFE31PT220R1E9L Murata Electronics North America
Same model may have multiple batches, images only for reference.

NFE31PT220R1E9L

Part No NFE31PT220R1E9L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 22PF SMD
Datasheet
NFE31PT220R1E9L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Current 6A
Values C = 22pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.069" (1.75mm)
Win Source Part Number 025227-NFE31PT220R1E9L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NFE31PT220R1E9L CAD Model

Description

The Murata Electronics North America NFE31PT220R1E9L is a low-pass filter with a voltage rating of 25V.

  • Voltage Rating: 25V
  • Applications: General Purpose
  • Current Rating: 6A
  • Technology: LC (T-Type)
  • Height: 0.069" (1.75mm)
  • Center/Cutoff Frequency: -
  • Attenuation Value: Not Specified
  • Filter Order: 3rd
  • Resistance Channel (Ohms): -
  • Package Type: SMD (SMT)
  • Values: C = 22pF
  • Temperature Range: -40°C to 85°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
