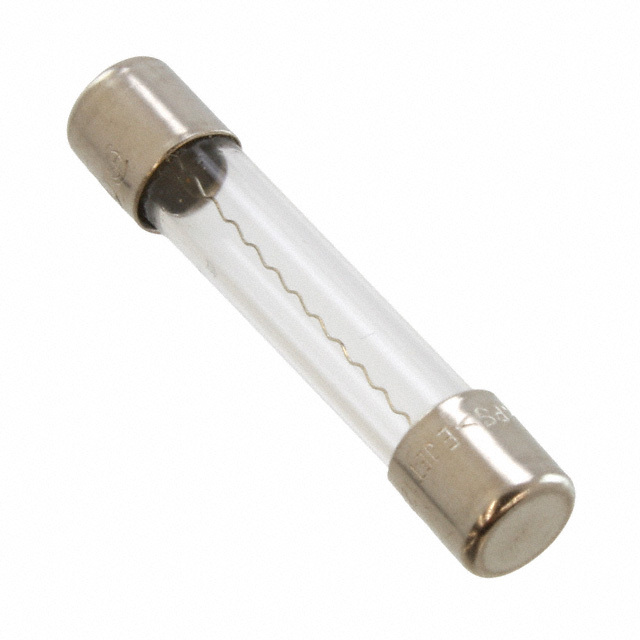

3AG 15-R Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3AG 15-R

Part No 3AG 15-R
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE GLASS 15A 125VAC 3AB 3AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 15 A
Voltage Rating - AC 125 V
Response Time Fast Blow
Case / Package 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 10kA
Melting I2t 845.0
Approval Agency CE, CSA, cURus, PSE
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.250\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1603383-3AG 15-R
Ultra Librarian 3D Model Ultra Librarian 3AG 15-R CAD Model
