Same model may have multiple batches, images only for reference.

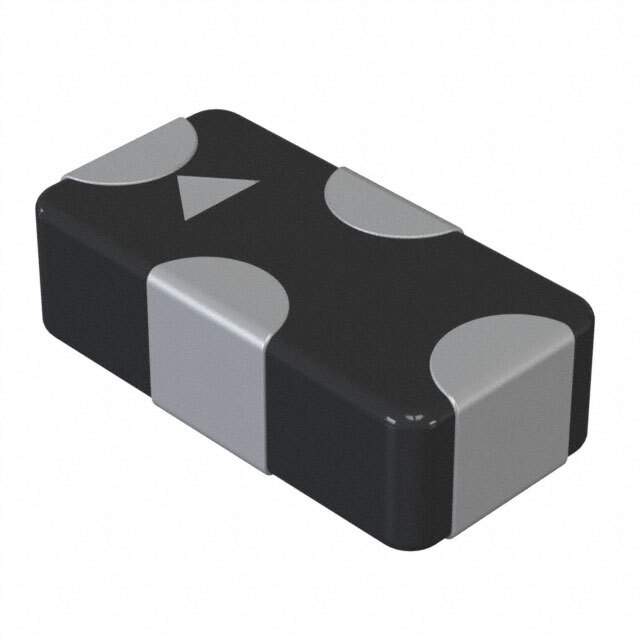

NFL15ST157X0J3D Real Image
Same model may have multiple batches, images only for reference.

NFL15ST157X0J3D

Part No NFL15ST157X0J3D
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 115NH/22PF SMD
Datasheet
NFL15ST157X0J3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel L = 115nH, C = 22pF 50 mA 0402 (1005 Metric), 4 PC Pad
Manufacturer Murata Electronics North America
Series EMIFIL®, NFL15
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 0402 (1005 Metric), 4 PC Pad
Family Name NFL15ST
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number NFL15ST157X0J3D-ND, 490-16916-1, 490-16916-2, 490-16916-6
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 887211-NFL15ST157X0J3D
Ultra Librarian 3D Model Ultra Librarian NFL15ST157X0J3D CAD Model

Description

The Murata Electronics North America EMI filter is a high-quality product that is designed to offer reliable and efficient operation.

  • Manufacturer: Murata Electronics North America
  • Package Type: Reel - TR
  • Series: EMIFIL, NFL15
  • Frequency: 8GHz ~ 24GHz
  • Filter Type: 3rd order low pass 1 channel LC (T-Type) EMI filter
  • Current Rating: 50 mA
  • L: 115nH
  • C: 22pF 0402 (1005 Metric), 4 PC Pad configuration
  • Mounting Type: Surface Mount
  • Category: Filters
  • Supply and Demand Status: Limited
  • Quantity per Package: 10000
