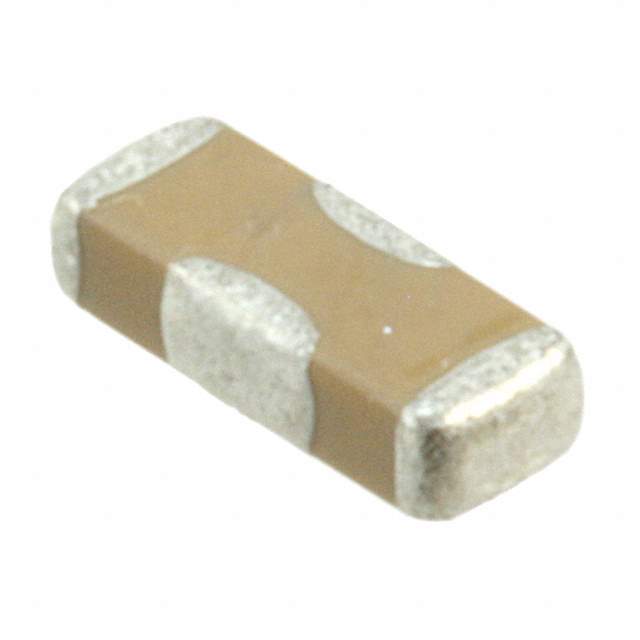

NFM3DCC220U1H3L Real Image
Same model may have multiple batches, images only for reference.

NFM3DCC220U1H3L

Part No NFM3DCC220U1H3L
Manufacturer Murata Electronics North America
Catalog Feed Through Capacitors
Description CAP FEEDTHRU 22PF 50V 1205
Datasheet
NFM3DCC220U1H3L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Capacitance 22pF
Tolerance -20%, +50%
Voltage Rating 50V
Current 300mA
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.049" W (3.20mm x 1.25mm)
Height (Max) 0.035" (0.90mm)
Win Source Part Number 025292-NFM3DCC220U1H3L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NFM3DC
Introduction Date September 29, 2003
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian NFM3DCC220U1H3L CAD Model

Description

The NFM3DCC220U1H3L is a high popularity electronic component manufactured by Murata Electronics North America.

  • This component is suitable for use in various electronic devices and equipment.
  • It has a balanced supply and demand status.
  • The NFM3DCC220U1H3L is a surface mount ceramic capacitor with a capacitance of 22pF and a voltage rating of 50V.
  • It has a tolerance of -20%, +50% and a temperature range of -55°C to 125°C.
  • Please refer to the manufacturer's datasheet for more information.
