Same model may have multiple batches, images only for reference.

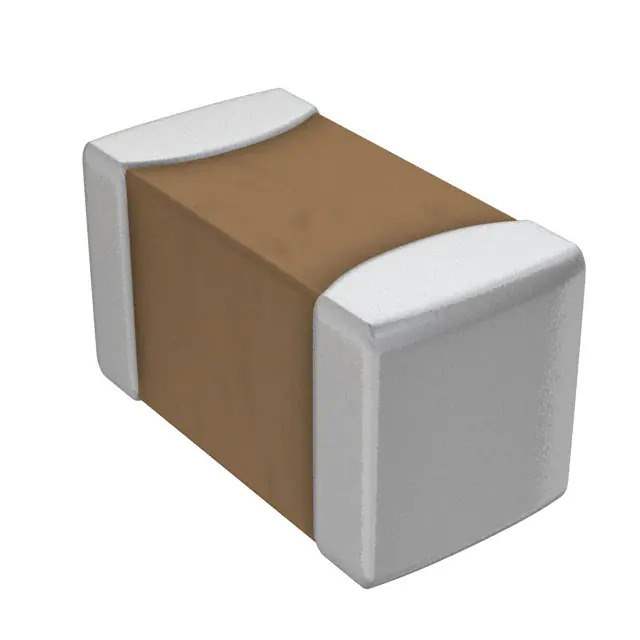

NFZ15SG262SN10D Real Image
Same model may have multiple batches, images only for reference.

NFZ15SG262SN10D

Part No NFZ15SG262SN10D
Manufacturer Murata Electronics North America
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 0402 1LN
Datasheet
NFZ15SG262SN10D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Murata Electronics North America
Series NFZ
Package Tape & Reel
Product Status Active
Number of Lines 1
Current Rating (Max) 350mA
DC Resistance (DCR) (Max) 1Ohm
Temperature Range - Operating -40°C ~ 85°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Base Product Number NFZ15SG
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 740449-NFZ15SG262SN10D
Ultra Librarian 3D Model Ultra Librarian NFZ15SG262SN10D CAD Model

Description

The 740449-NFZ15SG262SN10D is a ferrite bead and chip filter from the NFZ series.

  • Mounting: surface mount
  • Current Rating: 350mA
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.022" (0.55mm)
  • Package: tape & reel
  • Manufacturer: Murata Electronics North America
  • Standard Package: 10,000 pcs
  • Operating Temperature: -40°C to 85°C
  • REACH: unaffected
  • Commonly Used for: suppressing electromagnetic interference (EMI) in electronic circuits
