Same model may have multiple batches, images only for reference.

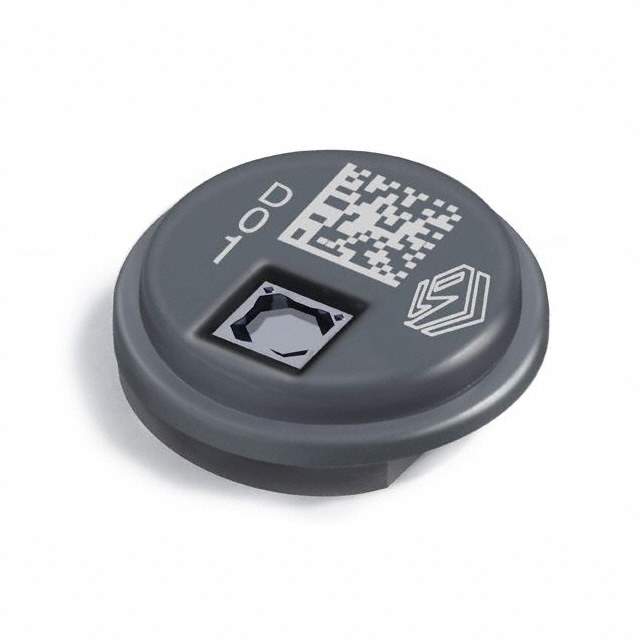

SCP1000-D01 Real Image
Same model may have multiple batches, images only for reference.

SCP1000-D01

Part No SCP1000-D01
Manufacturer Murata Electronics North America
Catalog Pressure Sensors, Transducers
Description SENSOR 30-120KPA SPI / Pressure Sensor 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) Absolute 16 b 18-SMD Module
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Murata Electronics
Series SCP1000
Package Tape & Reel
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa)
Output Type SPI
Output 16 b
Accuracy ±0.029PSI (±0.2kPa)
Voltage - Supply 2.4V ~ 3.3V
Port Style No Port
Features Standby Mode
Termination Style SMD (SMT) Tab
Maximum Pressure 290.08PSI (2000kPa)
Temperature Range - Operating -20°C ~ 70°C
Package / Case 18-SMD Module
Base Product Number SCP1000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Other Names SCP1000-D01-ND,Q4718234,551-1046-2,Q2542102,551-1046-1,SCP1000-D01-NDR,SCP1000D01,551-1046-6
Standard Package 100
Win Source Part Number 1000589-SCP1000-D01
Ultra Librarian 3D Model Ultra Librarian SCP1000-D01 CAD Model

Description

The 1000589-SCP1000-D01 is a pressure sensor/transducer from the SCP1000 series from Murata Electronics.

  • Win Source Part Number: 1000589-SCP1000-D01
  • Termination: SMD (SMT) Tab
  • Package: Tape & Reel
  • Standard Package: 100
  • Output Type: SPI
  • Output Resolution: 16 b
  • Accuracy: ±0.029PSI (±0.2kPa)
  • Pressure Type: Absolute
  • Operating Pressure: 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa)
  • Maximum Pressure: 290.08PSI (2000kPa)
  • Voltage Supply: 2.4V ~ 3.3V
  • Temperature Range: -20°C ~ 70°C
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 9026.20.4000
