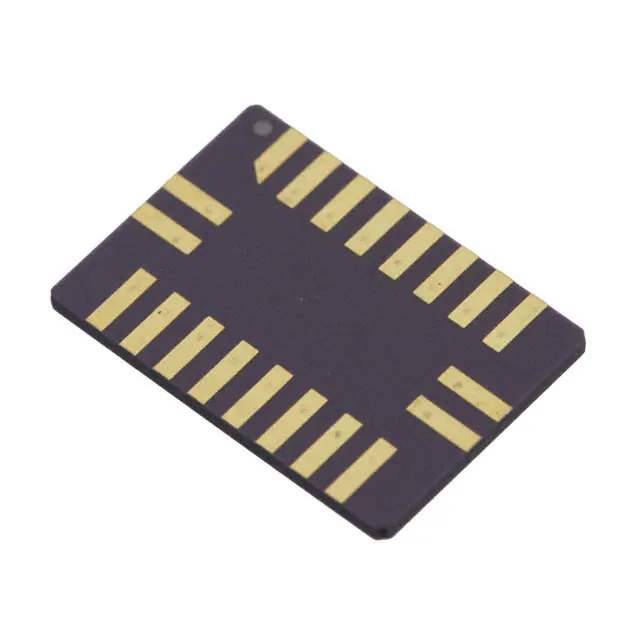

TR1000 Real Image
Same model may have multiple batches, images only for reference.

TR1000

Part No TR1000
Manufacturer Murata Electronics North America
Catalog RF Transceiver ICs
Description IC RF TXRX ISM<1GHZ SM20H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Murata Electronics North America
Package Tape & Reel
Product Status Obsolete
Programmable Not Verified
Type TxRx Only
RF Family/Standard General ISM < 1GHz
Modulation ASK, OOK
Frequency 916MHz
Data Rate (Max) 115.2kbps
Power - Output 1.5dBm
Sensitivity -106dBm
Voltage - Supply 2.2V ~ 3.7V
Current - Receiving 1.8mA ~ 3.8mA
Current - Transmitting 12mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 20-SMD Module
Supplier Device Package SM-20H
Base Product Number TR10
Standard Package 250 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A991B1
HTSUS 8517.79.0000
Win Source Part Number 691181-TR1000
Ultra Librarian 3D Model Ultra Librarian TR1000 CAD Model

Description

The TR1000 is an RF transceiver IC designed for general ISM applications below 1GHz.

  • Package: 20-SMD module
  • Mounting: Surface Mount
  • Frequency: 916MHz
  • Modulation Schemes: ASK and OOK
  • Maximum Data Rate: 115.2kbps
  • Power Output: 1.5dBm
  • Sensitivity: -106dBm
  • Supply Voltage: 2.2V to 3.7V
  • Current Consumption (Transmission): 12mA
  • Package Quantity: 250
