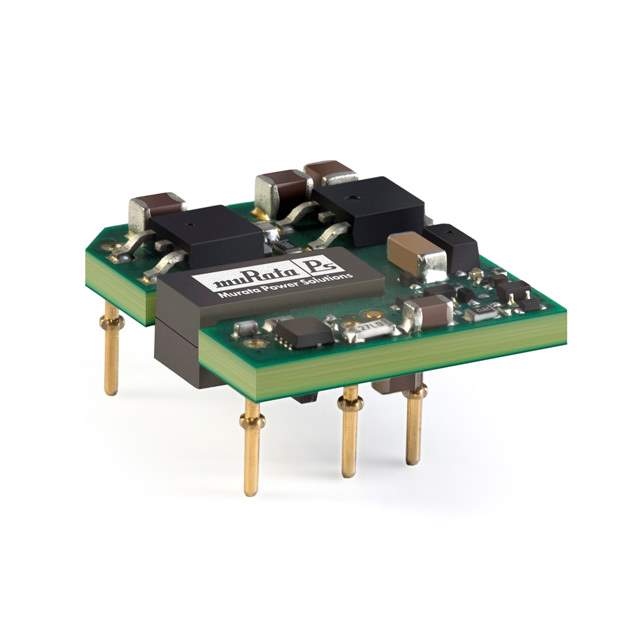

Same model may have multiple batches, images only for reference.

BEI15-150-Q12P-C

Name: BEI15-150-Q12P-C
Brand: Murata Power Solutions Inc.
SKU: 1381586
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BEI15-150-Q12P-C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 15W / Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	BEI15 (15W)
Package	Tray
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	500mA, 500mA
Power (Watts)	15 W
Voltage - Isolation	2 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.10" L x 0.96" W x 0.35" H (27.9mm x 24.4mm x 8.9mm)
Base Product Number	BEI15-150
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	90 pcs
Win Source Part Number	1381586-BEI15-150-Q12P-C
Ultra Librarian 3D Model	Ultra Librarian BEI15-150-Q12P-C CAD Model

Alternative Products

Description

The 1381586-BEI15-150-Q12P-C is a DC-DC converter from the BEI15 series.

Type: Isolated Module
Power Rating: 15W
Dimensions: 1.10 inches (27.9mm) Length, 0.96 inches (24.4mm) Width, 0.35 inches (8.9mm) Height
Application: ITE (Commercial)
Package: Tray
Number of Outputs: 2
Output Current: 500mA (each output)
Input Voltage: 9V to 36V
Output Voltage: 15V and -15V
Efficiency: 84%
Mounting Type: Through-Hole
