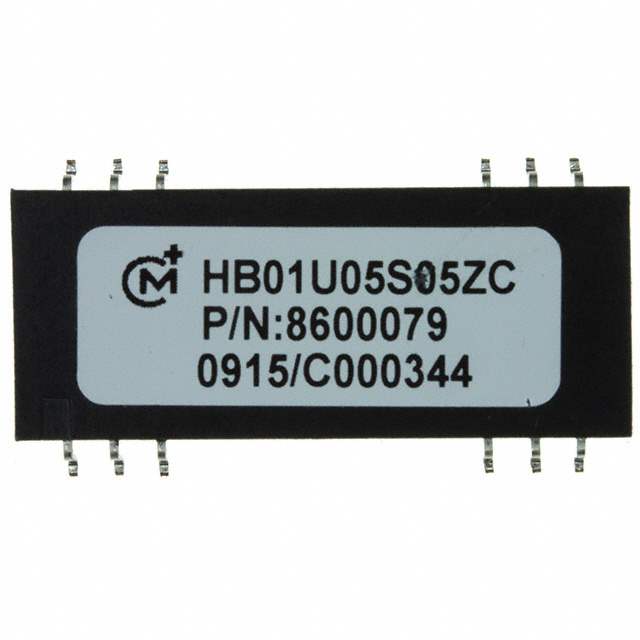

HB01U05S05ZC Real Image
Same model may have multiple batches, images only for reference.

HB01U05S05ZC

Part No HB01U05S05ZC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 5V 200MA UNREGUL
Datasheet
HB01U05S05ZC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series HB01UZC
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 2.5kV (2500V)
Applications ITE (Commercial)
Mounting Style SMD/SMT
Package 24-SMD Module
Size / Dimension 1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 68%
Power (Watts) - Max 1W
Win Source Part Number 204577-HB01U05S05ZC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HB01U05S05ZC CAD Model

Description

The Murata Power Solutions Inc. HB01U05S05ZC is a DC DC converter from the HB01UZC series. The module has an output voltage of 5V and a maximum output current of 200mA. It has an efficiency of 68% and a power rating of 1W. The module comes in a SMD/SMT mounting style and has an isolation voltage of 2.5kV (2500V). It is designed for ITE (Commercial) applications and can operate within a temperature range of -40°C to 85°C. The dimensions of the module are 1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm). The input voltage range is between 4.5V and 5.5V.
