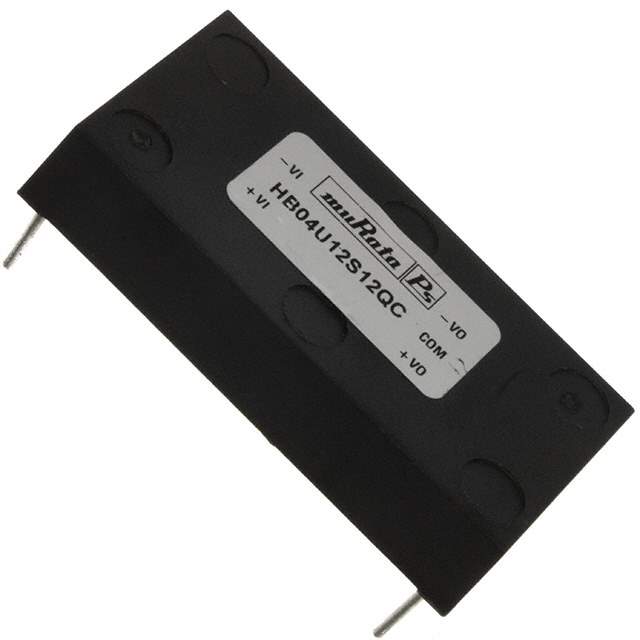

Same model may have multiple batches, images only for reference.

HB04U12S12QC

Name: HB04U12S12QC
Brand: Murata Power Solutions Inc.
SKU: 1061790
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	HB04U12S12QC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 4W / Isolated Module DC DC Converter 1 Output 12V 333mA 10.8V - 13.2V Input
Datasheet	HB04U12S12QC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	HB04UC (4W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Current - Output (Max)	333mA
Power (Watts)	4 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	HB04U12
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1743-5
Standard Package	44
Win Source Part Number	1061790-HB04U12S12QC
Ultra Librarian 3D Model	Ultra Librarian HB04U12S12QC CAD Model

Alternative Products

Description

The HB04UC (4W) series isolated module DC-DC converter is designed for ITE (Commercial) applications.

Series: HB04UC (4W)
Application: ITE (Commercial)
Power Rating: 4 W
Efficiency: 87%
Voltage Isolation: 3 kV
Standard Package: 44
Mounting Type: Through-Hole
Output: Single
Maximum Current Output: 333mA
Voltage Output: 12V
Voltage Input Range: 10.8V to 13.2V
Operating Temperature: -40°C to 85°C
Dimensions: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Alternative Parts: REC15-4812SZ/H2/M, LME1209DC, MEE1S1509DC, REC6-1212SRW/R10/A, S36SE12002PRFZ, UHE-12/2500-Q12-C
Manufacturer: Murata Power Solutions Inc.
