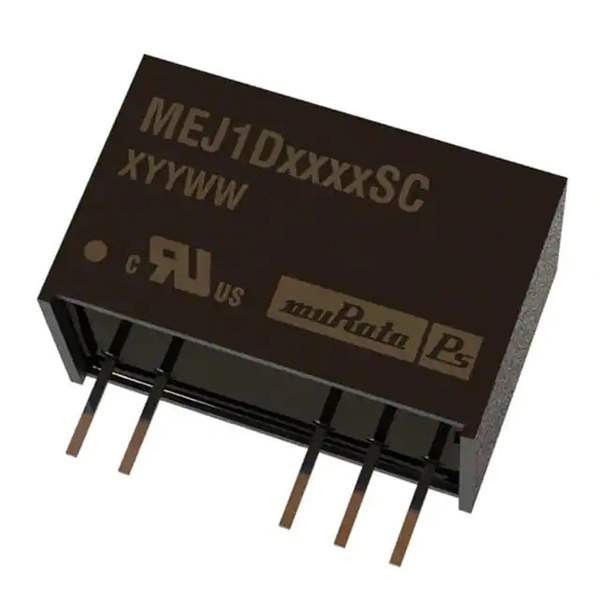

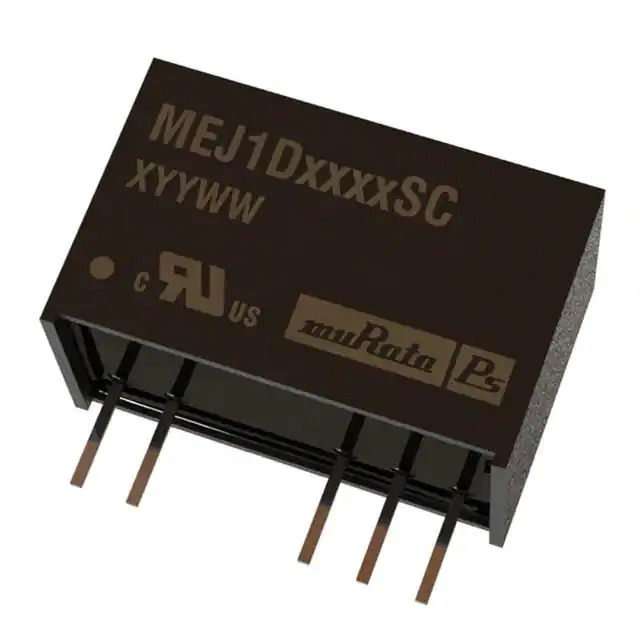

MEJ1D1509SC Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

MEJ1D1509SC

Part No MEJ1D1509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series MEJ1 (1W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 55mA, 55mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial), Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 76.5%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
Control Features -
Base Product Number MEJ1D15
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1379149-MEJ1D1509SC
Ultra Librarian 3D Model Ultra Librarian MEJ1D1509SC CAD Model

Description

The MEJ1D1509SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Status: Obsolete
  • Temperature Range: -40°C to 85°C
  • Voltage Input: 13.5V to 16.5V
  • Output: 9V and -9V
  • Package: 7-SIP Module
  • Leads: 5
  • Mounting Type: Through Hole
  • Feature: SCP (Short Circuit Protection)
