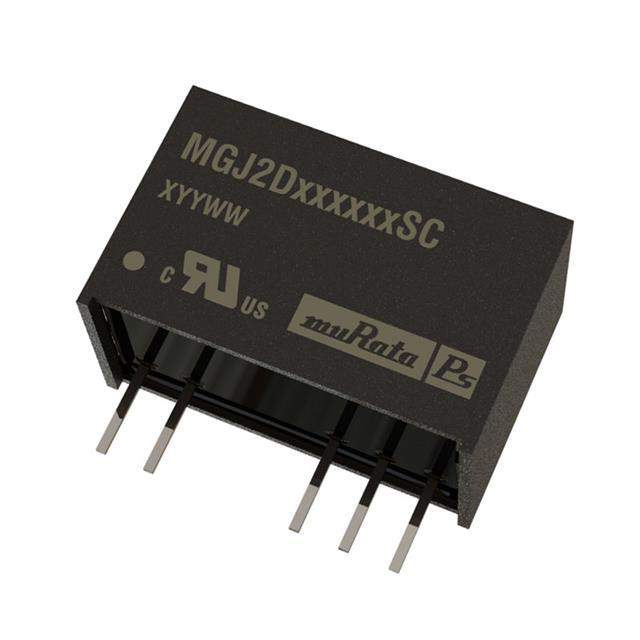

MGJ2D122005SC

Name: MGJ2D122005SC
Brand: Murata Power Solutions Inc.
SKU: 639228
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MGJ2D122005SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	5.2kVDC Isolated 2W Gate Drive DC/DC Converters
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Murata Power Solutions Inc.
Series	MGJ2
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Input Voltage MIN	10.8V
Voltage Input MAX	13.2V
Voltage - Output 1	20V
Voltage - Output 2	-5V
Current - Output (Maximum)	80mA, 40mA
Power (Watts)	2W
Voltage - Isolation	5.2kV (5200V)
Applications	ITE (Commercial), Medical
Features	SCP
Operating Temperature Range	-40°C ~ 100°C
Efficiency	82%
Mounting Style	Through Hole
Package	7-SIP Module, 5 Leads
Size	0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
Win Source Part Number	1221916-MGJ2D122005SC
Manufacturer Homepage	www.murata-ps.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	MGJ2D122005SC
Introduction Date	April 17, 2014
Country of Origin	China
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian MGJ2D122005SC CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. MGJ2D122005SC isolated module is a 7-SIP module with 5 leads.

Manufacturer: Murata Power Solutions Inc.
Module Type: isolated
Package: 7-SIP module with 5 leads
Mounting Style: through-hole
Packaging: tube
Series: MGJ2
Operating Temperature: -40°C ~ 100°C
Feature: SCP
Applications: ITE (Commercial) and Medical
Power: 2W
Efficiency: 82%
Voltage Isolation: 5.2kV (5200V)
Outputs: 2
Output 1 Voltage: 20V
Output 2 Voltage: -5V
Input Voltage Range: 10.8V to 13.2V
Current Output 1: 80mA
Current Output 2: 40mA
EOL Date: 2025 (estimated)
Category: Power Supplies - Board Mount
