Same model may have multiple batches, images only for reference.

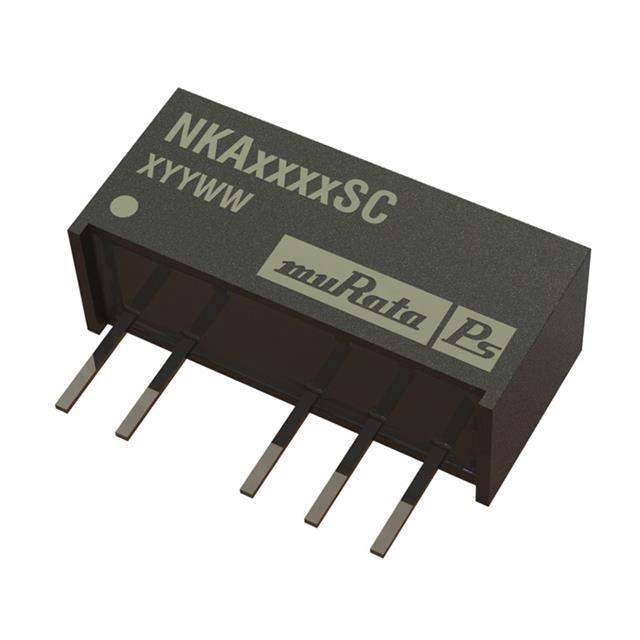

NKA1212SC Real Image
Same model may have multiple batches, images only for reference.

NKA1212SC

Part No NKA1212SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Through Hole
Case / Package 6-SIP Module, 5 Leads
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Base Product Number NKA12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1425-5
Standard Package 30
Win Source Part Number 1335288-NKA1212SC
Ultra Librarian 3D Model Ultra Librarian NKA1212SC CAD Model

Description

The Murata Power Solutions Inc. NKA1212SC is a 1W isolated DC/DC converter module with a voltage isolation of 3 kV.

  • Power: 1W
  • Voltage Isolation: 3 kV
  • Number of Outputs: 2
  • Maximum Output Current: 42 mA each
  • Voltage Output: 12V and -12V
  • Mounting Type: through-hole
  • Package Size: 6-SIP module, 5 leads
  • Efficiency: 81%
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • REACH: REACH unaffected
