Same model may have multiple batches, images only for reference.

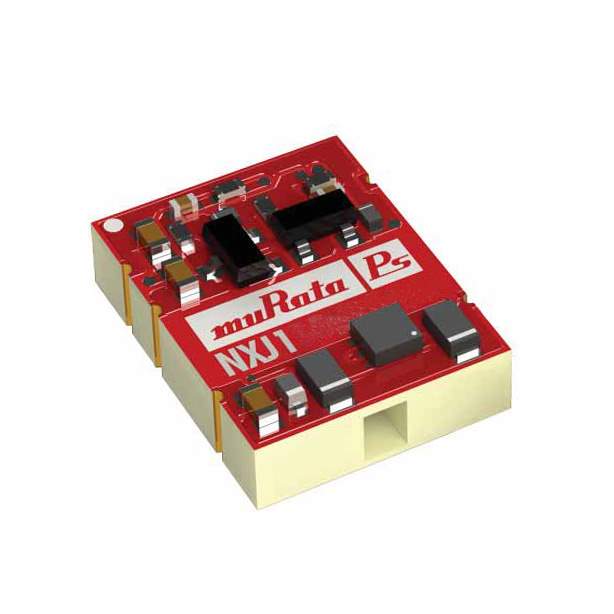

NXJ1S1212MC-R13 Real Image
Same model may have multiple batches, images only for reference.

NXJ1S1212MC-R13

Part No NXJ1S1212MC-R13
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 83mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NXJ1 (1W)
Package Tape & Reel
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Current - Output (Max) 83mA
Power (Watts) 1 W
Voltage - Isolation 4.2 kV
Applications ITE (Commercial) , Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 71%
Mounting Type Surface Mount
Package / Case 14-SMD Module, 5 Leads
Size / Dimension 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm)
Base Product Number NXJ1S12
Standard Package 800
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338144-NXJ1S1212MC-R13
Ultra Librarian 3D Model Ultra Librarian NXJ1S1212MC-R13 CAD Model

Description

The NXJ1 (1W) series isolated module is a power supply board mount DC-DC converter designed by Murata Power Solutions Inc.

  • Manufacturer: Murata Power Solutions Inc.
  • Series: NXJ1 (1W)
  • Converter Type: DC-DC
  • Power: 1W
  • Feature: SCP
  • Packaging: Tape and Reel
  • Size: 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm)
  • Number of Outputs: 1
  • Maximum Output Current: 83mA
  • Input Voltage: 10.8V to 13.2V
  • Voltage Isolation: 4.2 kV
  • Efficiency: 71%
  • Application: ITE (Commercial) and Medical
  • ECCN: EAR99
