Same model may have multiple batches, images only for reference.

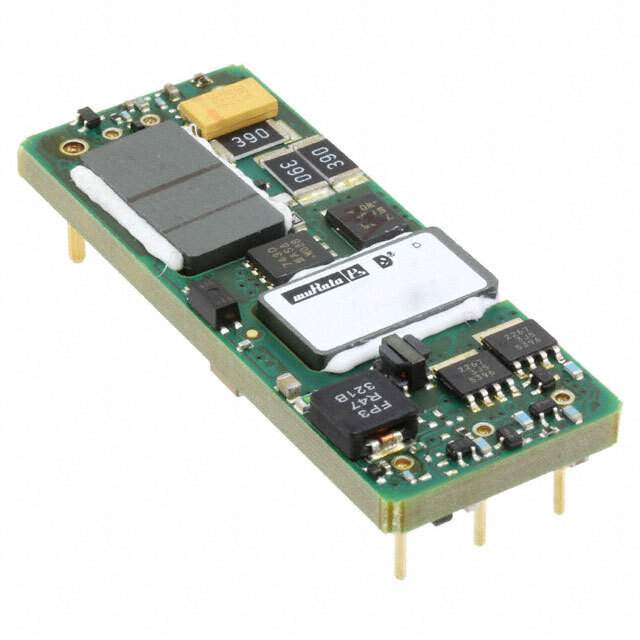

UWE-24/3-Q12P-C Real Image
Same model may have multiple batches, images only for reference.

UWE-24/3-Q12P-C

Part No UWE-24/3-Q12P-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 72W / Isolated Module DC DC Converter 1 Output 24V 3A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series UWE
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 3A
Power (Watts) 72 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89.5%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Size / Dimension 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
Control Features Enable, Active High
Base Product Number UWE-24
Standard Package 42
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1339575-UWE-24/3-Q12P-C
Ultra Librarian 3D Model Ultra Librarian UWE-24/3-Q12P-C CAD Model

Description

The UWE series isolated module DC-DC converter by Murata Power Solutions Inc. is designed for use in ITE (Commercial) applications.

  • Power (Watts): 72 W
  • Voltage - Input (Min): 9V
  • Voltage - Input (Max): 36V
  • Voltage - Output: 24V
  • Current - Output: 3A
  • Efficiency: 89.5%
  • Control Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
  • Mounting Type: Through Hole
  • Package / Case: 8-DIP Module, 1/8 Brick
  • Size / Dimension: 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
  • Voltage - Isolation: 1.5 kV
  • Standard Package: 42
