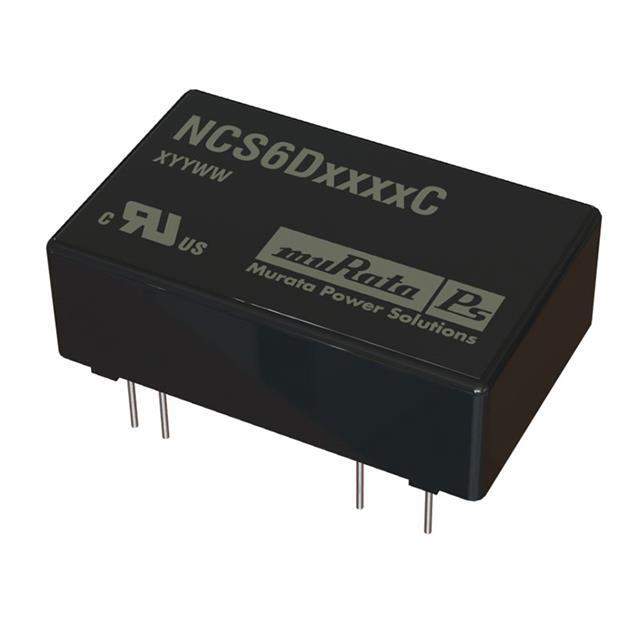

NCS6D4815C Real Image
Same model may have multiple batches, images only for reference.

NCS6D4815C

Part No NCS6D4815C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERT DC/DC +/-15V 200MA THRU / Module DC-DC 48VIN 2-OUT 15V/-15V 0.2A/-0.2A 6W 8-Pin Tube
Datasheet
NCS6D4815C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCS6
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 18V
Voltage Input MAX 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 200mA, 200mA
Power (Watts) 6W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 84%
Mounting Style Through Hole
Package 24-DIP Module (600 mil, 8 Leads)
Dimension 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Win Source Part Number 790634-NCS6D4815C
Popularity Medium
Supply and Demand Status Limited
Family Name NCS6D4815C
Introduction Date June 17, 2009
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NCS6D4815C CAD Model

Description

The NCS6D4815C is a DC DC converter module from Murata Power Solutions Inc.

  • Applications: Power supplies - board mount
  • Package: 24-DIP module
  • Leads: 8
  • Size: 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
  • Type: Isolated Module
  • Outputs: 2
  • Input Voltage Range: 18V to 75V
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Maximum Output Current: 200mA (per output)
  • Efficiency: 84%
  • Applications: ITE (Commercial)
