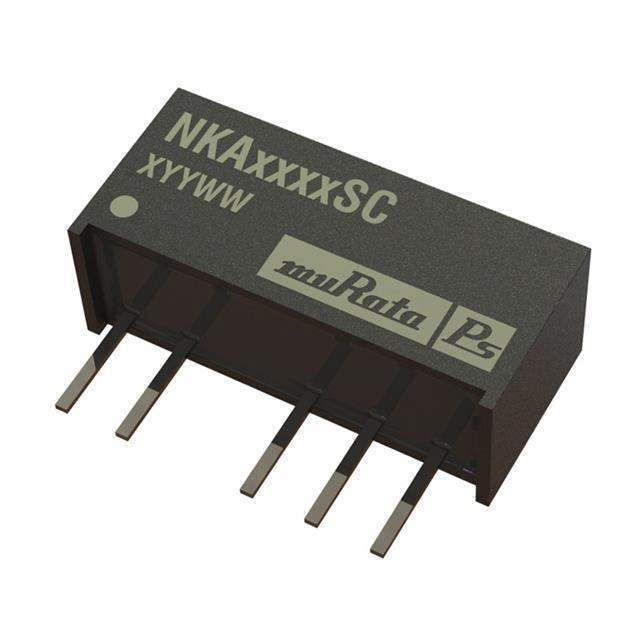

Same model may have multiple batches, images only for reference.

NKA0503SC

Name: NKA0503SC
Brand: Murata Power Solutions Inc.
SKU: WS1209098
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NKA0503SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-3.3V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1209098-NKA0503SC
Manufacturer	Murata Power Solutions Inc.
Category	Power Supplies - Board Mount DC DC Converters
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Operating Temperature	-40°C ~ 85°C
Efficiency	77%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 5 Leads
Ultra Librarian 3D Model	Ultra Librarian NKA0503SC CAD Model

Alternative Products

Description

The NKA sub-miniature series of industrial temperature range DC-DC converters are the standard building blocks for on-board distributed power systems. The series offers smaller package size, improved efficiency, lower output ripple and 3kVDC isolation capability through the use of state of the art packaging and technology. Ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 1 watt.
