Same model may have multiple batches, images only for reference.

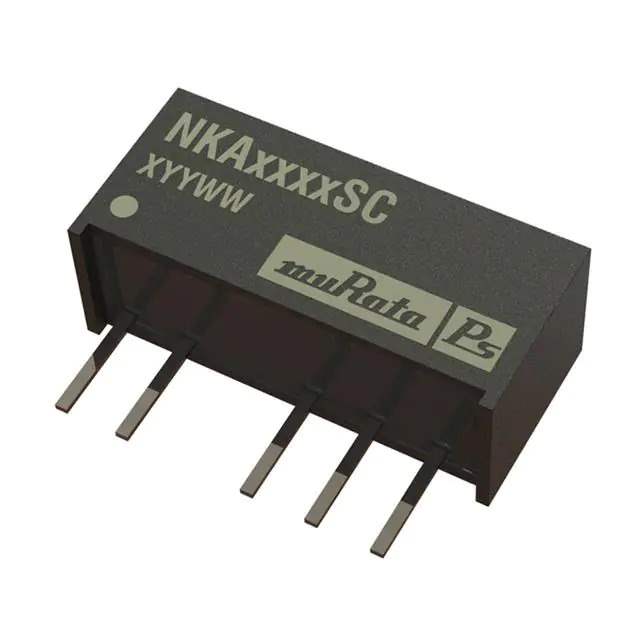

NKA0509SC Real Image
Same model may have multiple batches, images only for reference.

NKA0509SC

Part No NKA0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NKA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 56mA, 56mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 76%
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Base Product Number NKA05
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648812-NKA0509SC
Ultra Librarian 3D Model Ultra Librarian NKA0509SC CAD Model

Description

The 648812-NKA0509SC is a power supply DC-DC converter module from Murata Power Solutions Inc.

  • Series: NKA series, which is a 1W isolated module
  • Application: designed for use in power supplies for commercial information technology equipment (ITE)
  • Package: tube with a size of 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
  • Outputs: two outputs
  • Maximum Output Current: 56mA each
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 9V (Output 1) and -9V (Output 2)
  • Voltage Isolation: 3 kV
  • Efficiency: 76%
  • Mounting: designed for through-hole mounting
  • Module: 6-SIP module with 5 leads
  • Operating Temperature Range: -40°C to 85°C
  • Benefit: compact size and high voltage isolation, an ideal choice for power supply applications in commercial ITE devices, provides stable and efficient power conversion, ensuring reliable performance for your electronic devices
