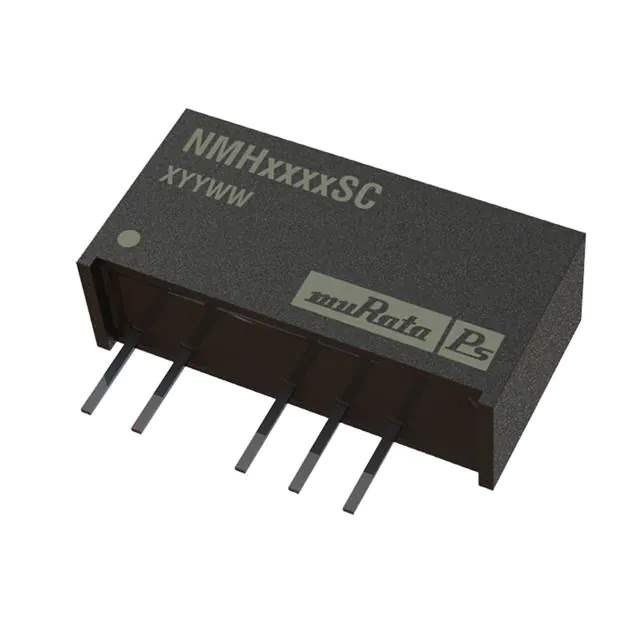

The NMH1215SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

• Series: It is part of the NMH series
• Application: and is designed for power supplies in board mount applications.
• Outputs: The module features two outputs with a maximum output current of 67mA each.
• Input Voltage Range: The input voltage range is from 10.8V to 13.2V, and the output voltage is 15V and -15V.
• Voltage Isolation: The module offers a voltage isolation of 1 kV and has an efficiency of 84%.
• Package: It comes in a 7-SIP module with 5 leads and has a temperature range of -40°C to 85°C.
• Use: The NMH1215SC is commonly used in ITE (Commercial) applications and is packaged in a tube with a standard package of 25 pcs.
