Same model may have multiple batches, images only for reference.

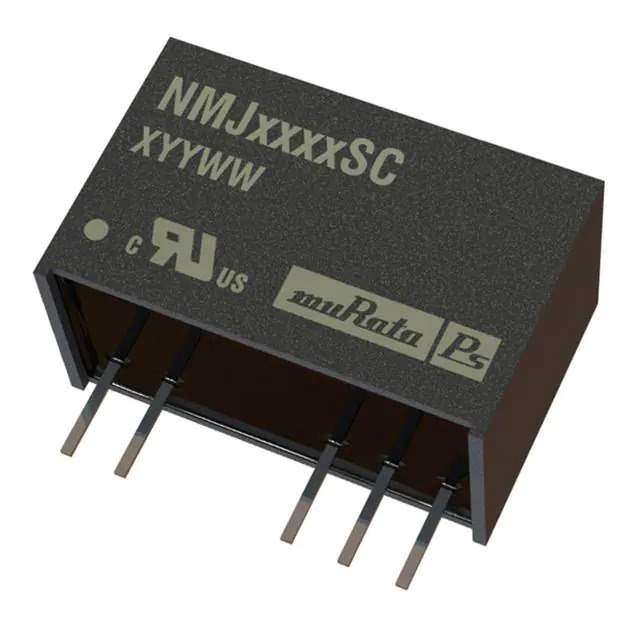

NMJ1209SC Real Image
Same model may have multiple batches, images only for reference.

NMJ1209SC

Part No NMJ1209SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMJ (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 55mA, 55mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 60°C
Efficiency 65%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
Base Product Number NMJ12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649171-NMJ1209SC
Ultra Librarian 3D Model Ultra Librarian NMJ1209SC CAD Model

Description

The NMJ1209SC is a 1W isolated module DC-DC converter from the NMJ series by Murata Power Solutions Inc.

  • Series: NMJ
  • Application: Power supplies in board mount applications, specifically in the power supplies of commercial information technology equipment (ITE)
  • Package: Tube
  • Dimensions: 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
  • Outputs: Two outputs
  • Maximum Output Current: 55mA each
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltages: 9V and -9V
  • Voltage Isolation: 5.2 kV
  • Efficiency: 65%
  • Mounting Type: Through-hole
  • Operating Temperature: -40°C to 60°C
  • Status: Active
