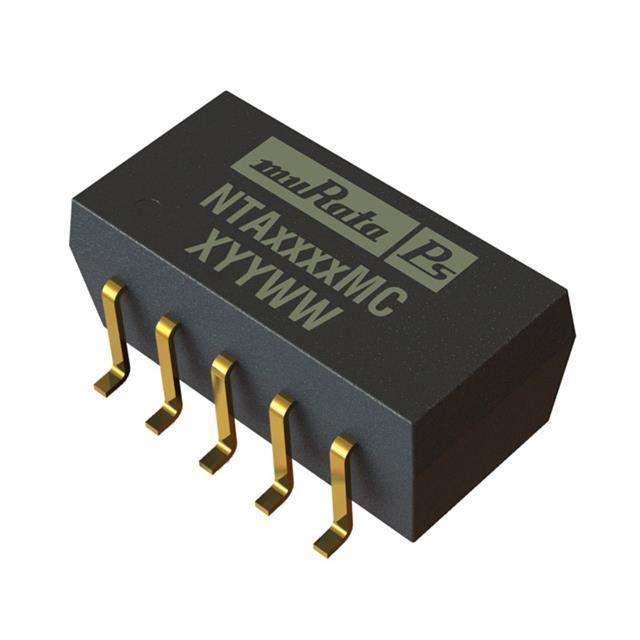

NTA0505MC Murata Power Solutions Inc. NTA0505MC Real Image
Same model may have multiple batches, images only for reference.

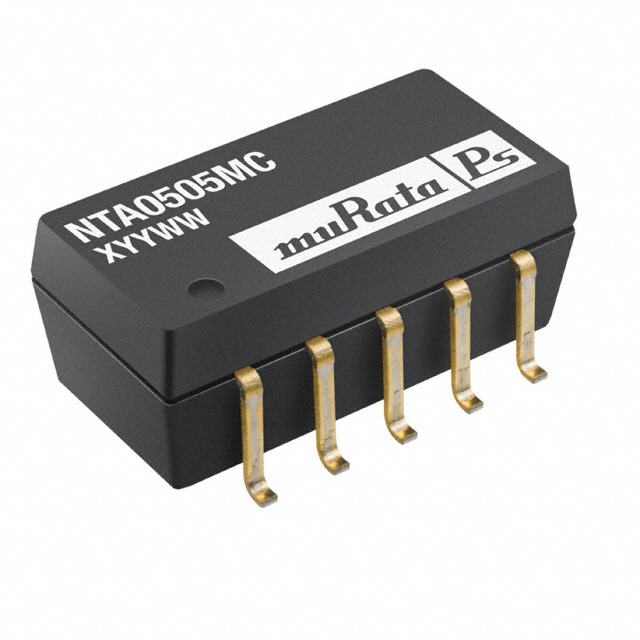

NTA0505MC Murata Power Solutions Inc. NTA0505MC Real Image
NTA0505MC Murata Power Solutions Inc. NTA0505MC Real Image
Same model may have multiple batches, images only for reference.

NTA0505MC

Part No NTA0505MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 2-OUT 5V/-5V 0.1A/-0.1A 1W 10-Pin SMD Tube / CONV DC/DC SM 1W 5VIN 5V DL 1KV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series NTA
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style SMD/SMT
Package 18-SMD Module (10 Leads)
Size / Dimension 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 69%
Power (Watts) - Max 1W
Win Source Part Number 025740-NTA0505MC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NTA0505
Introduction Date June 27, 2007
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NTA0505MC CAD Model

Description

The Murata Power Solutions Inc. NTA series is an isolated module with two outputs.

  • Outputs: This DC-DC converter has a maximum output current of 100mA for both outputs, and the output voltages are 5V and -5V.
  • Input Voltage: The input voltage range is between 4.5V to 5.5V.
  • Package: The package type is an 18-SMD module, and it is surface mountable.
  • Size: The size of the module is 0.60 inches in length, 0.30 inches in width, and 0.26 inches in height.
  • Operating Temperature: The operating temperature range is between -40°C to 85°C.
  • Application: The Murata Power Solutions Inc. NTA series is suitable for ITE (Commercial) applications.
